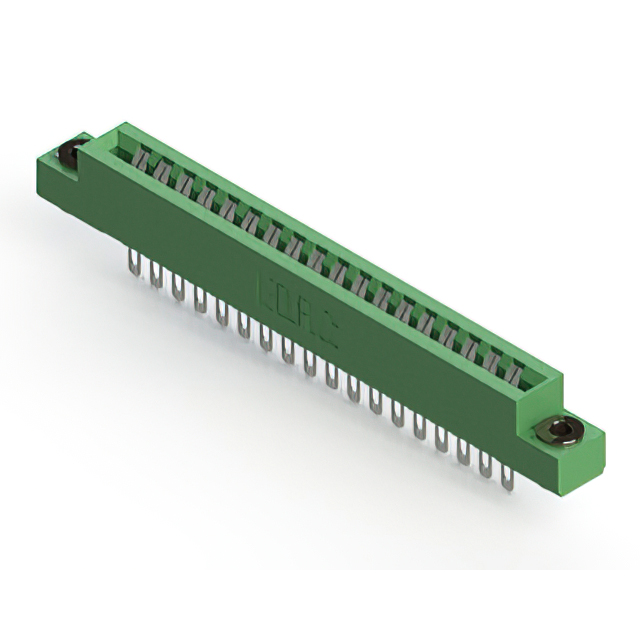

306-018-400-103

$11.21

Description：CONN EDGE DUAL FMALE 36POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:2a2a8af16cd5 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-018-400-103 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 36POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-018-400-103

Description：CONN EDGE DUAL FMALE 36POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：18
Number of Positions：36
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-018-400-103

306-018-400-103

Edgeboard Connectors Overview

The EDAC Inc. model 306-018-400-103 is a female card edge connector from the 306 series, designed for single central row applications with 18 positions. It features a contact pitch of 0.156 inches (3.96 mm) and utilizes wire hole type contacts with tin plating. The insulator is constructed from green polyester thermoplastic, providing panel mount compatibility with flush mount and floating flange features. This component supports standard PCB thicknesses and offers reliable interconnection for electronic modules requiring secure mechanical and electrical engagement.

Edgeboard Connectors Feature Summary

Single central row configuration with 18 positions
Wire hole type contacts with tin plating
Green polyester thermoplastic insulator
Panel mount design with flush mount and floating flange

Edgeboard Connectors Applications

Electronic module interconnection
Printed circuit board acceptance systems
Panel mounted equipment integration

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating and insulation material properties. Ensure the selected variant matches the required panel mounting style and flange features. Confirm that the single row configuration aligns with the target PCB design specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a single row interface with 18 positions is required. The 0.156-inch pitch accommodates standard card edge designs. Consider the tin-plated contacts for general-purpose applications and the floating flange feature for alignment tolerance in panel mount installations.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series, which specializes in card edge connectors. The series provides various position counts and termination options. The 306-018-400-103 specifically addresses needs for single-row, 18-position connections with tin-plated contacts and panel mount capabilities.
