306-018-500-103

Edgeboard Connectors Overview

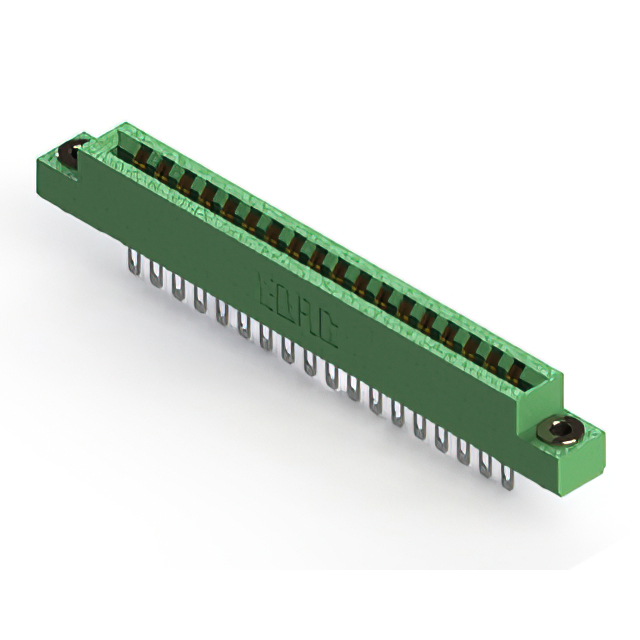

The EDAC 306-018-500-103 is a standard card edge connector receptacle featuring 18 positions arranged in a single centerline row. It utilizes gold-plated copper alloy contacts with a 3.96mm (0.156 inch) spacing and accepts printed circuit boards with a nominal thickness of 1.57mm (0.062 inch). The component employs panel mount installation with solder eyelet termination. Constructed with a thermoplastic polyester housing, it operates within a temperature range of -40°C to +105°C and maintains an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Single centerline row configuration for compact board integration
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester housing provides structural stability

Edgeboard Connectors Applications

• Standard card edge interconnections
• Panel-mounted electronic assemblies
• Industrial control system interfaces

Edgeboard Connectors Procurement Notes

Verify the specific contact finish thickness and exact housing material grade against the manufacturer's official datasheet before finalizing procurement. Confirm that the single-row configuration aligns with the target PCB design requirements. Ensure the panel mount style matches the mechanical constraints of the intended enclosure. Cross-reference the operating temperature limits with the environmental conditions of the application site to guarantee long-term reliability.

Edgeboard Connectors Selection Notes

Select this component when a single-row card edge interface is required for panel mounting applications. The 3.96mm pitch accommodates standard board thicknesses while maintaining a low profile. Consider the thermoplastic polyester housing for general-purpose durability. Evaluate the thermal performance limits against the operational environment. Ensure the solder eyelet termination method is compatible with the assembly process.

Edgeboard Connectors Part Context

This part belongs to the EDAC standard card edge connector family, designed for robust interconnection solutions. The series emphasizes compatibility with standard PCB dimensions and offers versatile mounting options. Components in this line typically feature durable materials suitable for industrial environments. The specific model integrates standard electrical characteristics with mechanical precision for consistent performance.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' components without rigorous testing.
