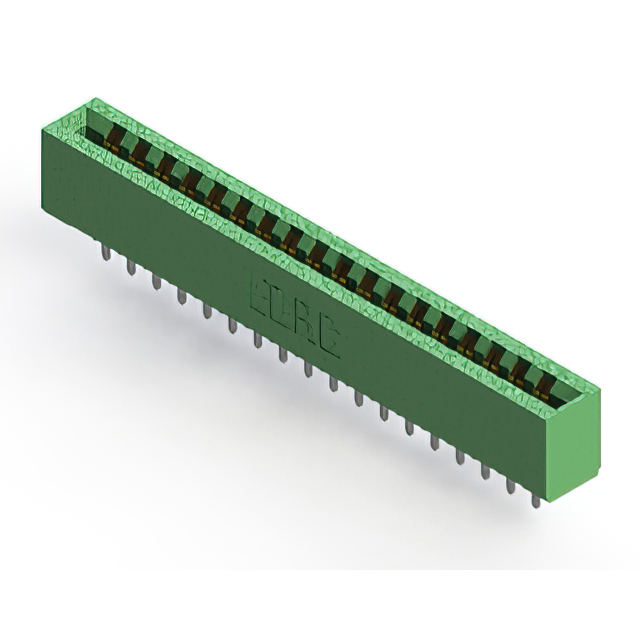

306-018-520-101

$9.41

Description：CONN EDGE DUAL FMALE 36POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:3f38d05803d0 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-018-520-101 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 36POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-018-520-101

Description：CONN EDGE DUAL FMALE 36POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：18
Number of Positions：36
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-018-520-101

306-018-520-101

Edgeboard Connectors Overview

The EDAC Inc. 306-018-520-101 is a standard card edge connector designed for dual-edge board interfaces. It features 36 positions with a 3.96 mm (0.156 inch) pitch. The connector supports a maximum PCB thickness of 1.57 mm and utilizes gold-plated copper alloy contacts rated for 5 A current. It employs a vertical panel mount style with a green thermoplastic housing, offering an insulation resistance of 5 Gohms.

Edgeboard Connectors Feature Summary

Dual-edge female contact configuration for secure board insertion
Gold-plated copper alloy contacts ensure reliable conductivity
Vertical panel mount design facilitates structured assembly

Edgeboard Connectors Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure that the procurement channel provides valid RoHS compliance certificates. Cross-reference the manufacturer part number with authorized distributor lists to confirm authenticity and traceability before finalizing orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge interface with a 3.96 mm pitch is required. Confirm that the target printed circuit board thickness does not exceed 1.57 mm. Verify that the application environment remains within the thermal limits of the green thermoplastic housing. Ensure the vertical mounting orientation aligns with the mechanical constraints of the enclosure design.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series is engineered for high-reliability applications requiring robust electrical connections. The 306-018-520-101 variant specifically addresses needs for 36-position dual-edge connectivity in compact industrial and commercial electronic assemblies.
