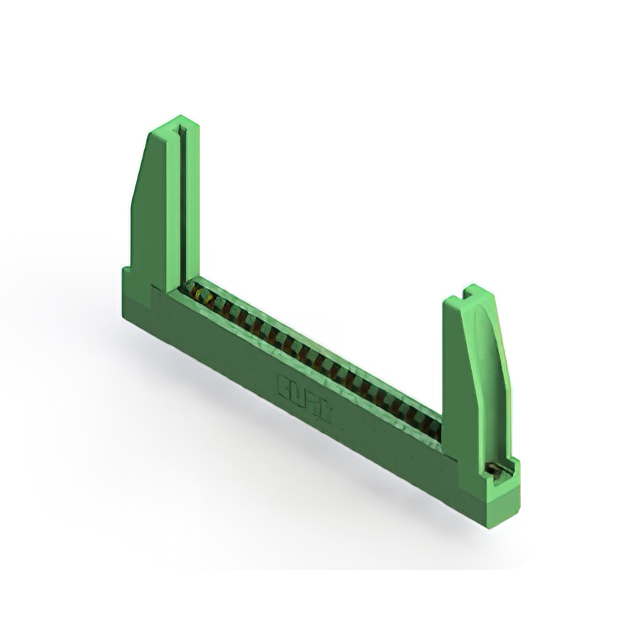

306-018-521-178

$11.84

Description：CONN EDGE DUAL FMALE 36POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:3bfe85396f15 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-018-521-178 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 36POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-018-521-178

Description：CONN EDGE DUAL FMALE 36POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：18
Number of Positions：36
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-018-521-178

306-018-521-178

Edgeboard Connectors Overview

The EDAC Inc. 306-018-521-178 is a dual-edge card edge connector designed for through-hole mounting. It features 36 positions with female contacts arranged in two rows of 18, utilizing a 0.156-inch (3.96mm) contact spacing. The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). Contacts are constructed from copper alloy and feature gold plating to ensure reliable signal transmission. The insulator body is black, and the unit operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

Dual-edge configuration with 36 total positions for robust board connection
Gold-plated copper alloy contacts ensure durable electrical performance
Designed for standard 0.062-inch thick PCBs with 0.156-inch spacing

Edgeboard Connectors Applications

Industrial control systems requiring reliable I/O connections
Telecommunications equipment interface modules
Test and measurement instrumentation backplanes

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 36-position dual-edge specification. Confirm compatibility with 0.062-inch PCB thickness standards. Ensure environmental ratings meet operational requirements. Cross-reference manufacturer documentation for precise mechanical dimensions before integration into final assembly designs.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge connector with 0.156-inch spacing is required. It is suitable for applications needing 36 signal paths with through-hole termination. Consider the operating temperature range and gold plating durability for long-term reliability in industrial or telecom environments.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of card edge connectors. The series offers various pin counts and configurations tailored for different board thicknesses and spacing requirements. The 306-018 variant specifically addresses needs for moderate density connections with standard industrial form factors.
