306-019-400-103

Edgeboard Connectors Overview

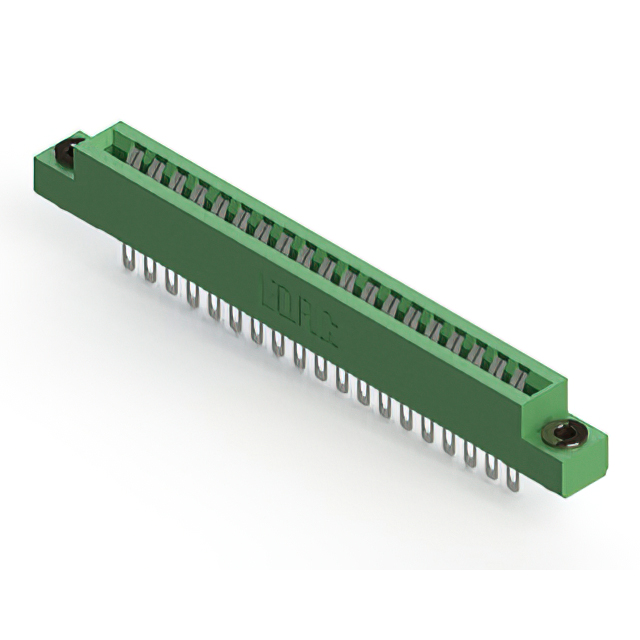

The EDAC Inc. part number 306-019-400-103 is a dual-edge female card edge connector from the 306 Series. It features 38 positions with a 0.156-inch (3.96mm) centerline spacing. The connector utilizes green insulation and tin-plated contacts. Key mechanical attributes include a flush mount configuration with a floating bobbin flange featuring a 0.116-inch diameter. The unit operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure board insertion
• Floating bobbin flange mechanism for alignment tolerance
• Green thermoplastic insulation material construction
• Flush mount installation style with specific flange dimensions

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Consumer electronic module interfaces
• Medical device internal circuit connections

Edgeboard Connectors Procurement Notes

Verify the exact position count and plating specification against the official EDAC datasheet before ordering. Confirm that the floating bobbin flange dimension matches the enclosure requirements. Ensure the operating temperature range meets the environmental conditions of the target application. Check RoHS compliance status if required by project specifications.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a floating bobbin feature is required. The 0.156-inch centerline must align with the PCB trace layout. Consider the flush mount style for panel integration needs. Verify that the 38-position count fits the signal routing requirements. Ensure the green insulation color is acceptable for visual identification in the assembly.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 Series, which specializes in card edge connectors. The series offers various position counts and mounting styles. The 306-019-400-103 variant specifically provides a dual-edge female configuration. It is designed for reliable electrical connections in compact electronic assemblies requiring precise board alignment.

Edgeboard Connectors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Cross-reference with other EDAC 306 Series variants only if mechanical and electrical parameters match exactly. Do not assume compatibility with connectors from different manufacturers without detailed engineering validation.
