306-019-421-102

Edgeboard Connectors Overview

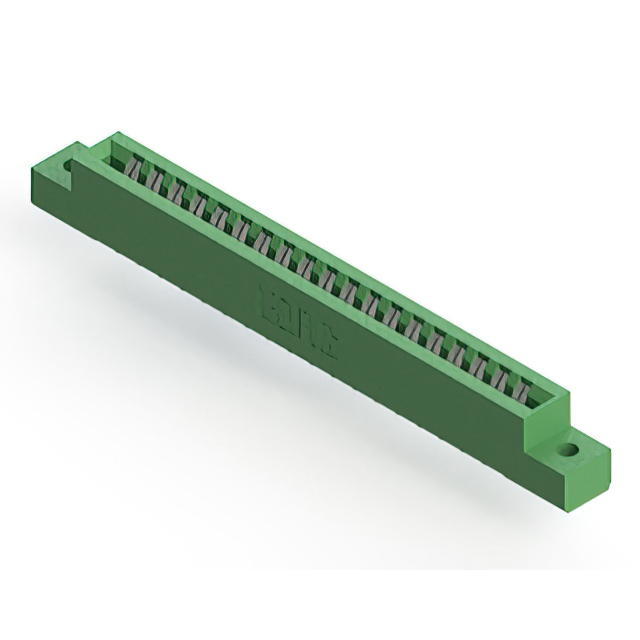

The EDAC Inc. 306-019-421-102 is a standard card edge connector receptacle designed for panel mount applications. It features a dual female configuration with 38 positions and a contact spacing of 3.96 mm (0.156 inches). The component utilizes gold-plated copper alloy contacts and a thermoplastic polyester insulator body. It accepts printed circuit boards with a nominal thickness of 1.57 mm. The connector employs a solder pin termination method and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure board retention
• Gold-plated copper alloy contacts ensure reliable conductivity
• Thermoplastic polyester insulator provides thermal stability
• Panel mount installation style with vertical orientation

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Test and measurement instrument interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, plating specifications, and mounting variations. Ensure compatibility with target PCB thickness standards before procurement. Confirm RoHS compliance status through current manufacturer declarations. Cross-reference datasheet revisions to validate dimensional tolerances and material properties for the specific production batch.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with 3.96 mm pitch is required. Verify that the application environment remains within the specified -40°C to +105°C operating range. Ensure the mating card thickness aligns with the 1.57 mm design specification. Confirm that panel mount constraints accommodate the vertical profile and flange dimensions provided in the mechanical drawings.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series offers various position counts and mounting styles. The 306-019-421-102 specifically addresses needs for dual-sided connections with high-density routing capabilities. It serves as a robust solution for connecting double-sided printed circuit boards in demanding electronic assemblies.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for alternative position counts or mounting configurations. Verify mechanical footprint compatibility if substituting with other manufacturers' products. Ensure electrical ratings and material compositions meet original design requirements.
