306-019-500-168

Edgeboard Connectors Overview

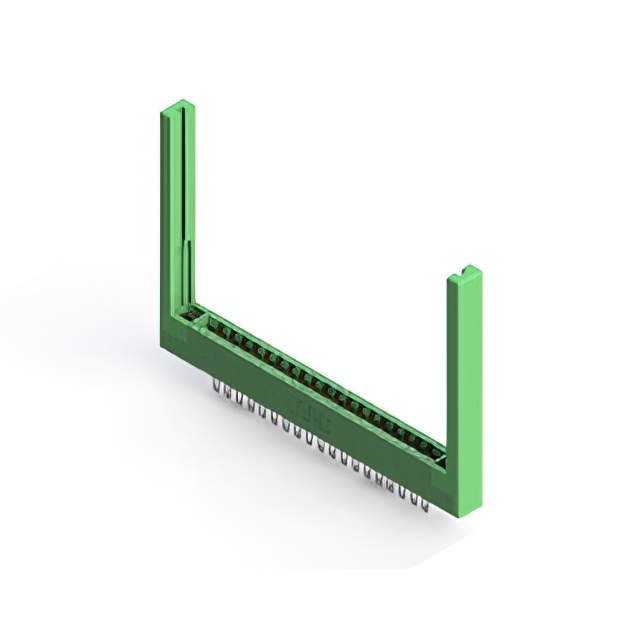

The EDAC Inc. 306-019-500-168 is a dual-edge female card edge connector designed for panel mounting applications. It features 19 positions with a 0.156-inch (3.96mm) pitch and utilizes gold-plated contacts on a copper alloy base. The housing is green thermoplastic polyester, rated for operation between -40°C and +105°C. This component supports PCB thicknesses from 0.054 to 0.070 inches and includes flush mount flanges with top openings.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated contacts ensure reliable signal transmission
• Flush mount flange design with top opening for easy installation

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Automotive electronic module connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact physical dimensions and plating specifications. Ensure compatibility with target PCB thickness ranges before procurement. Cross-reference the RoHS compliance status with current regulatory requirements for the intended market. Confirm that the package quantity aligns with production needs without relying on distributor estimates.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge interface with a 0.156-inch pitch is required. Verify that the target printed circuit board thickness falls within the specified operational range. Consider the operating temperature limits to ensure environmental suitability. Evaluate the flush mount requirement against available chassis space constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 Series of standard card edge connectors. The series offers various position counts and mounting options. The 306-019 variant specifically provides 19 positions in a dual-row arrangement. It is part of a broader family of interconnect solutions designed for robust industrial and commercial applications.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for direct substitutes with different position counts or flange configurations. Verify mechanical compatibility with existing mounting holes and PCB layouts before substituting.
