Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 38POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：19
- Number of Positions：38
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

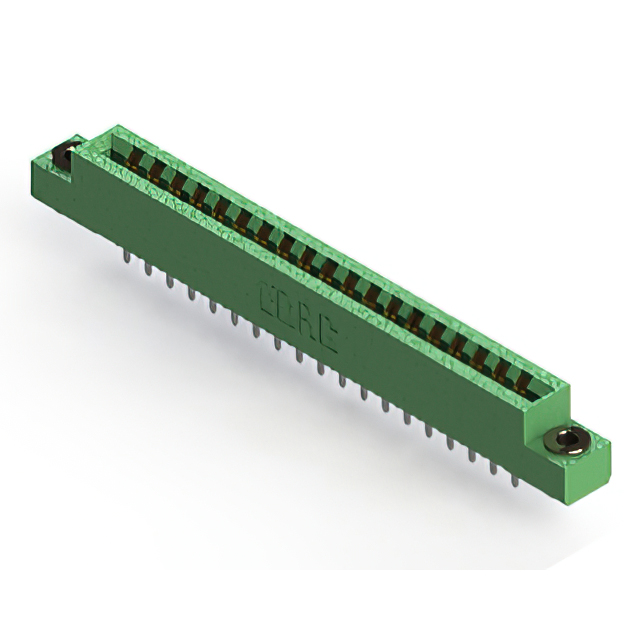

The EDAC Inc. 306-019-520-103 is a standard card edge connector from the 306 series, designed for vertical panel mounting applications. It features a dual female configuration with 38 positions and a contact spacing of 3.96 mm (0.156 inches). The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). Contacts are gold-plated copper alloy, rated for 5 A current, while the thermoplastic housing provides insulation resistance of 5 Gohms.
Feature Summary
- Dual edge female contact configuration for secure board insertion
- Vertical panel mount style with low profile insulator body
- Gold-plated copper alloy contacts ensuring reliable conductivity
- Compatible with standard 0.062 inch nominal thickness PCBs
Applications
- Industrial control system interconnections
- Communication equipment backplanes
- Consumer electronics module interfaces
- Energy sector hardware connections
Procurement Notes
Verify part number accuracy against official EDAC documentation before ordering. Confirm that the specific suffix matches required termination and mounting variations. Check regional availability as distribution status may vary by location. Ensure compliance with RoHS3 standards if applicable to your project requirements. Cross-reference supplier listings with manufacturer specifications to avoid counterfeit components.
Selection Notes
Select this component when a dual-edge female connector with 38 positions is required for vertical panel mounting. Ensure the target PCB thickness aligns with the 1.57 mm specification. Verify that the 3.96 mm pitch meets the design layout constraints. Consider the 5 A current rating for power signal requirements. Confirm that the thermoplastic housing material suits the environmental conditions of the application.
Part Context
This connector belongs to the EDAC 306 series, which offers various contact terminations and mounting options. The series supports multiple card guide solutions and high-temperature insulators. It is part of a broader portfolio including D-Sub and Power-D connectors, providing comprehensive interconnect solutions for industrial and commercial sectors.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult EDAC technical support for compatible alternatives within the 306 series or other EDAC product lines that match the pin count and pitch requirements.
