306-019-520-108

Edgeboard Connectors Overview

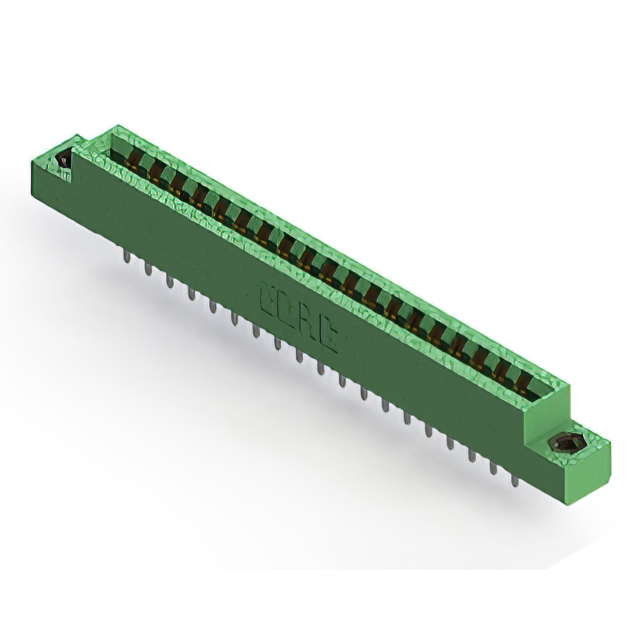

The EDAC Inc. 306-019-520-108 is a standard card edge connector designed for dual-edge board applications. It features a 38-position configuration with a contact spacing of 0.156 inches (3.96 mm). The connector utilizes gold-plated contacts and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Constructed with a low-profile insulator body, this component supports vertical panel mounting and is suitable for environments operating between -40°C and +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design accepting non-specified card types
• Gold-plated contacts ensuring reliable signal transmission
• Low-profile insulator body construction
• Vertical panel mount installation style

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment interface modules
• Agricultural technology hardware connections
• General-purpose electronic board-to-board interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm pin count, contact plating, and insulation material. Ensure compatibility with the target PCB thickness of 0.062 inches. Confirm RoHS compliance status if required by project specifications. Cross-reference the manufacturer part number with authorized distributor catalogs to validate current availability and lead times before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge connection is required for a 38-position interface with 3.96 mm spacing. The gold plating is essential for corrosion resistance in demanding environments. Verify that the mechanical constraints allow for the specified low-profile body height. Ensure the application temperature range falls within the -40°C to +105°C operational limits defined for this series.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 Series, a line of standard card edge connectors. The series offers various position counts and spacing options to accommodate different board designs. The 306 series is characterized by its durable construction and suitability for panel-mounted applications in industrial and commercial sectors.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 306 series variants with identical 38-position configurations and 0.156-inch pitch. Verify mechanical dimensions and electrical ratings match exactly before substitution.
