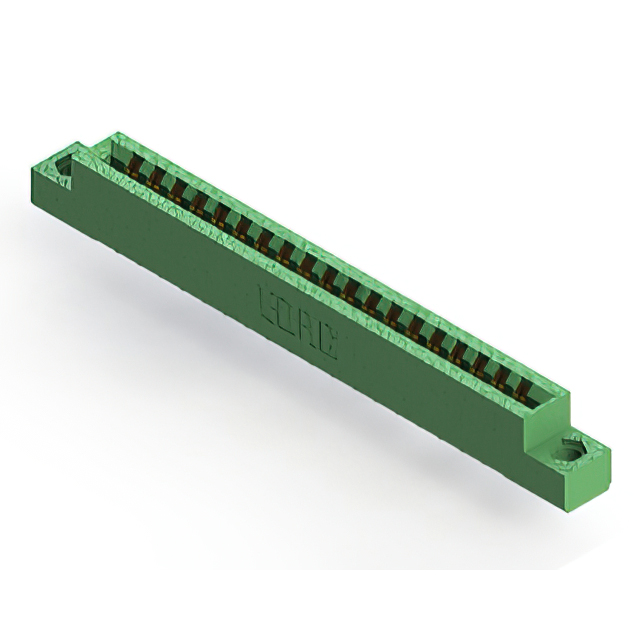

306-019-521-104 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 38POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-019-521-104
- Description：CONN EDGE DUAL FMALE 38POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：19
- Number of Positions：38
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-019-521-104
Edgeboard Connectors Overview
The EDAC Inc. 306-019-521-104 is a dual-edge female card edge connector designed for panel and through-hole mounting. It features 19 positions with a 0.156-inch (3.96mm) contact spacing. The connector utilizes gold-plated cantilever contacts on a green thermoplastic polyester insulator, rated for operation between -40°C and 105°C. It accepts non-specified dual-edge cards with thicknesses ranging from 0.054 to 0.070 inches.
Edgeboard Connectors Feature Summary
- Dual-edge female configuration with cantilever spring contacts
- Panel mount design with embedded flange and top opening
- Gold-plated terminals for reliable signal transmission
- Thermoplastic polyester insulation body
Edgeboard Connectors Applications
- Industrial control systems requiring robust board-to-board connections
- Embedded computing modules utilizing standard card edge interfaces
- Test and measurement equipment needing secure panel-mounted interconnects
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the manufacturer's current 306 Series Ordering Guide to ensure compatibility with required flange types and termination styles. Confirm that the target PCB thickness falls within the specified acceptance range of 0.054 to 0.070 inches before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a dual-edge female interface with 0.156-inch spacing is required for panel installation. Ensure the application environment remains within the -40°C to 105°C operating temperature range. Verify that the mating card edge geometry aligns with the cantilever contact design specifications.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting configurations. The 306-019-521-104 specifically provides a 19-position solution with embedded flange characteristics for secure panel integration.
Edgeboard Connectors Replacement Considerations
Consult the official EDAC 306 Series cross-reference documentation for verified substitute part numbers. Do not assume interchangeability with other series or manufacturers without validating mechanical dimensions and electrical ratings.
