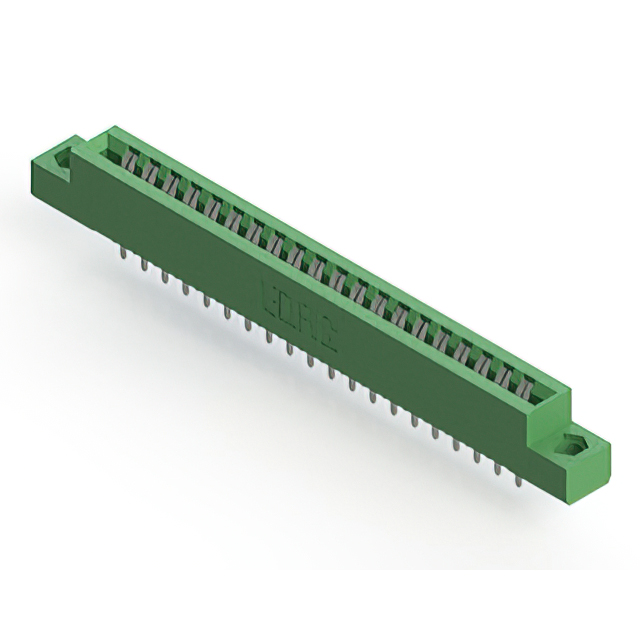

306-020-420-104 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 40POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-020-420-104
- Description：CONN EDGE DUAL FMALE 40POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：20
- Number of Positions：40
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-020-420-104
Edgeboard Connectors Overview
The EDAC Inc. 306-020-420-104 is a standard card edge connector receptacle featuring 20 positions arranged in a dual row configuration. It utilizes a 3.96 mm (0.156 inch) pitch and is designed for vertical panel mount installation with through-hole solder pin termination. The contacts are constructed from copper alloy with a tin finish, rated for 5 A current. The housing is made of thermoplastic polyester, supporting a board thickness of 1.57 mm.
Edgeboard Connectors Feature Summary
- Dual-row female contact configuration for high-density signal routing
- Cantilever contact type ensuring reliable card insertion and retention
- Thermoplastic polyester housing providing structural stability
Edgeboard Connectors Applications
- Industrial control system interconnects
- Telecommunications equipment backplanes
- Test and measurement instrument modules
Edgeboard Connectors Procurement Notes
Verify the specific contact plating specification against project requirements, as sources indicate both tin and gold finishes for similar series variants. Confirm that the 20-position dual-row layout matches the target PCB footprint. Ensure the panel mount orientation aligns with the mechanical assembly constraints before finalizing the order.
Edgeboard Connectors Selection Notes
Select this component when a robust dual-edge connector with a 3.96 mm pitch is required for panel-mounted applications. The 5 A rating suits moderate power distribution needs. Consider the tin-plated contacts for cost-effective general-purpose use, while verifying compatibility with the mating card's edge guide features.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting styles. The 306-020-420-104 specifically addresses the need for a 20-position dual-row interface with vertical panel mounting capabilities.
Edgeboard Connectors Replacement Considerations
Cross-reference with other EDAC 306 series parts for alternative position counts or mounting options. Verify mechanical dimensions and electrical ratings match before substituting.
