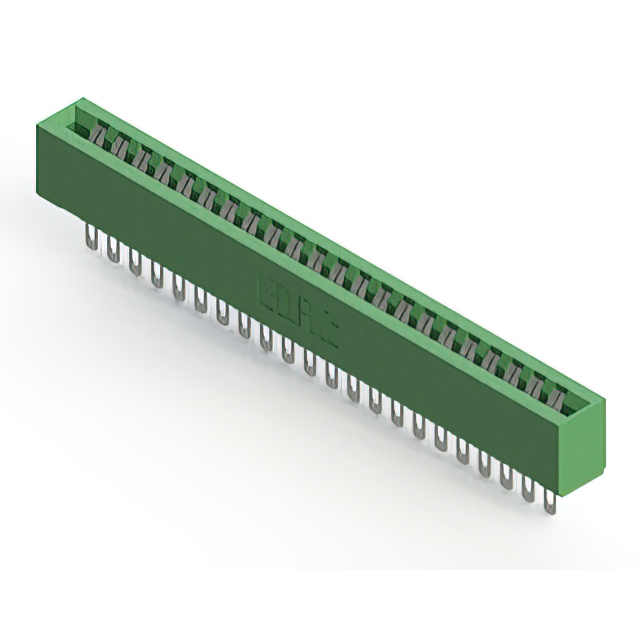

306-022-400-101

$10.81

Description：CONN EDGE DUAL FMALE 44POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:ce9ddfa02189 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 44POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：22
Number of Positions：44
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Free Hanging (In-Line)
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Download product information

306-022-400-101

Overview

The EDAC Inc. 306-022-400-101 is a standard card edge connector from the 306 Series, designed for panel mount vertical installation. It features a single row of 22 positions with a 3.96 mm (0.156 inch) pitch. The connector utilizes copper alloy contacts that are tin-plated and housed in a green thermoplastic polyester insulator. It supports a board thickness of 1.57 mm and offers a current rating of 5 A per contact. The unit employs solder pin termination for secure PCB attachment.

Feature Summary

Vertical panel mount configuration for robust mechanical stability
Single row design accommodating 22 connection points
Tin-plated copper alloy contacts for reliable conductivity
Thermoplastic polyester housing for thermal resistance

Applications

Industrial control system interconnects
Panel-mounted electronic modules
High-density signal routing applications

Procurement Notes

Verify the specific plating finish against official datasheets, as distributor listings may contain conflicting data regarding tin versus gold plating for this part number. Confirm the exact insulation color and material composition prior to ordering. Ensure compatibility with the target board thickness of 1.57 mm. Cross-reference the manufacturer's latest documentation to confirm availability status and any recent product change notifications affecting specifications.

Selection Notes

Select this component when a vertical, single-row card edge interface with a 3.96 mm pitch is required. It is suitable for applications needing a 5 A current rating and panel mounting style. Consider the thermoplastic polyester housing properties for environmental resilience. Validate that the 22-position count matches the circuit requirements and that the solder pin termination aligns with the assembly process.

Part Context

This part belongs to the EDAC 306 Series, which provides extensive customization options for card edge connectors. The series allows designers to tailor interconnect solutions by varying position counts, pitches, and mounting styles. The 306-022-400-101 represents a specific configuration within this flexible family, optimized for standard industrial connectivity needs.
