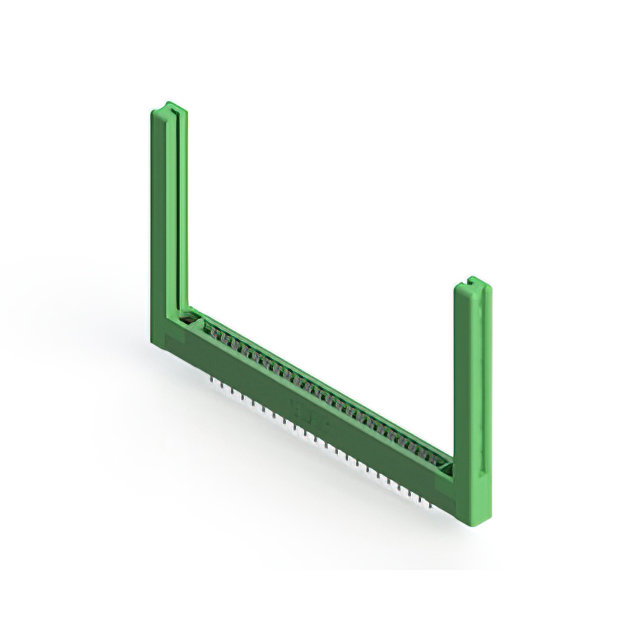

306-022-420-158

$13.20

Description：CONN EDGE DUAL FMALE 44POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:cc1a63812625 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 44POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：22
Number of Positions：44
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-022-420-158

Overview

The EDAC Inc. 306-022-420-158 is a standard card edge connector from the 306 Series, designed for dual female termination with 44 positions. It features a contact spacing of 0.156 inches (3.96 mm) and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The connector utilizes tin-plated tails for soldering and includes flanges for secure mounting.

Feature Summary

Dual female contact configuration for reliable board interface
Flanged design ensures stable panel or chassis mounting
Tin-plated tail contacts facilitate standard soldering processes

Applications

Industrial control systems requiring robust interconnects
Medical equipment utilizing EDAC medical interconnect solutions
Agricultural technology hardware operating in harsh environments

Procurement Notes

Verify the specific plating finish and package quantity against the official datasheet before ordering. Confirm that the required PCB thickness aligns with the connector's acceptance range. Ensure the mounting style matches the intended application requirements to avoid integration issues during assembly.

Selection Notes

Select this component when a dual-row female connector with 0.156-inch spacing is required. It is suitable for applications needing flanged mounting stability. Consider the tin-plated contacts if lead-free soldering compatibility is necessary. Evaluate the 44-position count against the signal routing needs of the target circuit board design.

Part Context

This part belongs to the EDAC 306 Series, which provides standard card edge connectors with 0.156-inch spacing. The series supports various position counts and mounting styles. EDAC specializes in interconnect solutions for demanding sectors, including medical and agricultural technologies, ensuring durability and reliability in specialized environments.

Replacement Considerations

Consult the official EDAC documentation for verified substitute part numbers within the 306 Series. Cross-reference pin counts and spacing dimensions to ensure mechanical compatibility. Verify electrical specifications and mounting configurations before substituting.
