Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 44POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：22
- Number of Positions：44
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

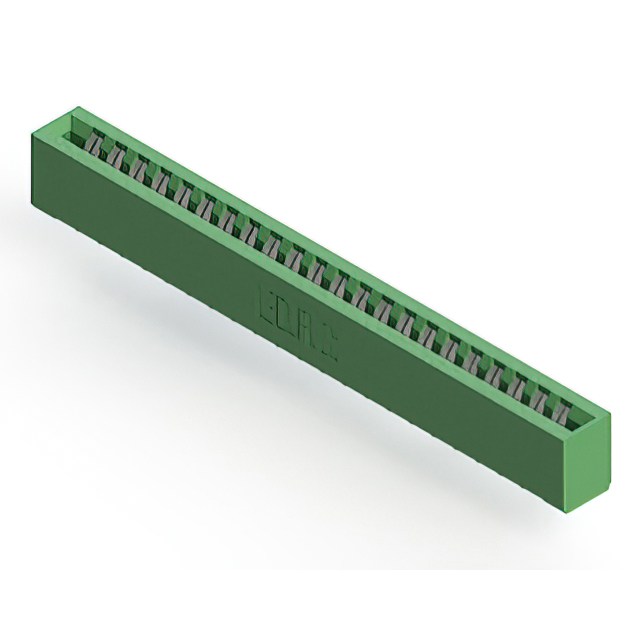

The EDAC Inc. 306-022-421-101 is a standard card edge connector receptacle featuring 22 positions with a single centerline row. It utilizes a 3.96 mm (0.156 inch) contact spacing and accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The component employs gold-plated copper alloy contacts for reliable signal transmission and uses a thermoplastic polyester insulator body. Designed for panel mount installation, it supports vertical orientation and solder pin termination to ensure secure mechanical and electrical connections.
Feature Summary
- Accepts nominal 1.57 mm thick printed circuit boards
- Features low profile insulator body construction
- Utilizes gold-plated copper alloy contacts
Applications
- Panel-mounted electronic assemblies
- Vertical interconnection systems
- Standard card edge interface applications
Procurement Notes
Verify the specific ordering suffix against official EDAC documentation to confirm contact plating and housing color specifications. Ensure the target application requires the 3.96 mm pitch and 1.57 mm board thickness compatibility. Confirm that the single-row configuration aligns with the design requirements before procurement.
Selection Notes
Select this component when a single-row card edge receptacle with 3.96 mm spacing is required. Verify that the mating card thickness falls within the acceptable range for the 1.57 mm nominal specification. Ensure the panel mount style and vertical orientation match the mechanical constraints of the enclosure design.
Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and configurations designed for robust industrial and commercial interconnect solutions. Components in this family typically feature thermoplastic polyester housings and support panel mounting for stable connection environments.
Replacement Considerations
Consult official EDAC substitution guides for verified equivalent parts. Cross-reference pitch, position count, and mounting style to ensure mechanical compatibility.
