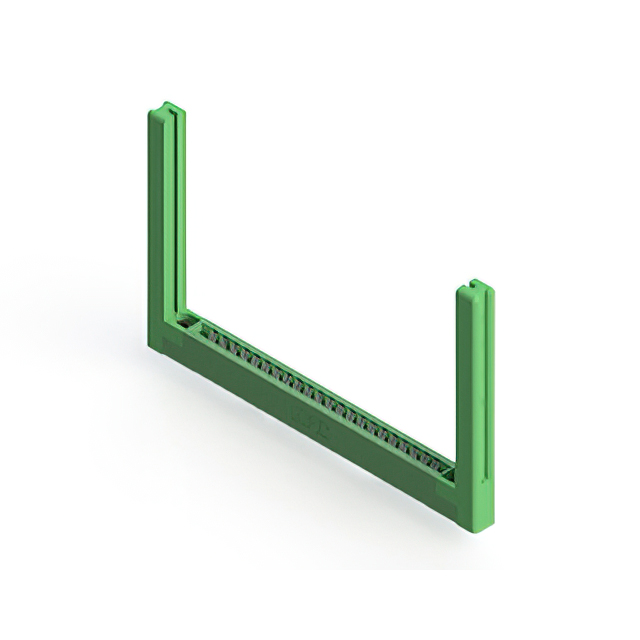

306-022-421-158

$13.20

Description：CONN EDGE DUAL FMALE 44POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:8ce19485f6ac Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 44POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：22
Number of Positions：44
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-022-421-158

Overview

The EDAC Inc. 306-022-421-158 is a dual-edge female card edge connector designed for through-hole mounting. It features 44 positions with a contact spacing of 0.156 inches (3.96mm). The connector utilizes tin-plated cantilever contacts and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). Constructed with a low-profile insulator body, this component is available in green coloration and supports vertical panel installation configurations.

Feature Summary

Dual-edge female configuration with cantilever contact design
Accepts standard 0.062 inch nominal thickness PCBs
Low-profile insulator body construction

Applications

General purpose board-to-board interconnection
Industrial control system backplanes
Telecommunications equipment interfaces

Procurement Notes

Verify the specific ordering suffix to confirm plating type and insulation color. The part number indicates tin plating and green housing. Ensure compatibility with the target PCB thickness of 0.062 inches before procurement. Confirm that the through-hole termination method aligns with the assembly process requirements.

Selection Notes

Select this component when a robust dual-edge interface with 0.156-inch spacing is required. The cantilever contact style offers reliable engagement for repeated insertions. Consider the low-profile design if vertical space constraints are present. Verify that the tin plating meets the environmental and conductivity requirements for the intended application.

Part Context

This connector belongs to the EDAC 306 series, which specializes in card edge solutions. The series provides various position counts and spacing options to accommodate different density needs. The 306-022-421-158 specifically addresses applications requiring 44 connections with a wider pitch compared to finer-pitch alternatives.

Replacement Considerations

Direct substitutes within the same series include variations in position count or plating. For identical specifications, verify exact matching of the 0.156-inch pitch and 44-position layout. Cross-reference with other manufacturers offering similar cantilever-style dual-edge connectors if availability is an issue.
