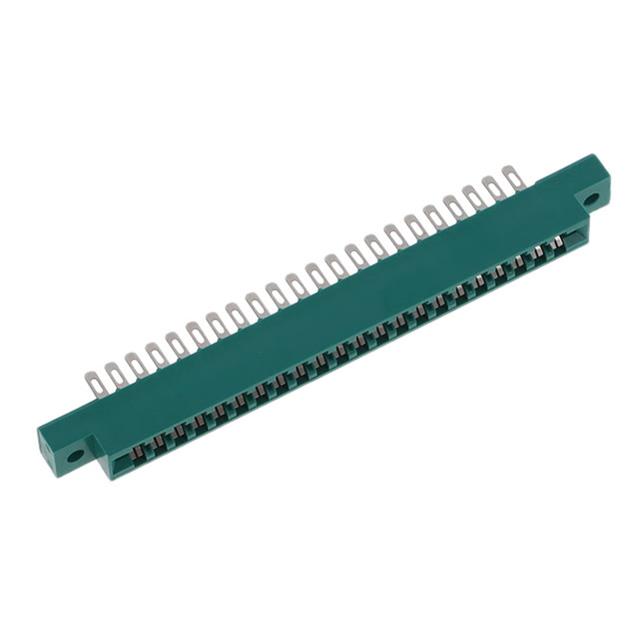

306-022-500-102

$14.39

Description：CONN EDGE DUAL FMALE 44POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:74b33211d7fe Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 44POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：22
Number of Positions：44
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-022-500-102

Overview

The EDAC 306-022-500-102 is a standard card edge connector featuring 44 positions arranged in a dual-row configuration. It utilizes a 3.96 mm (0.156 inch) contact spacing and accepts printed circuit boards with a thickness range of 1.37 mm to 1.78 mm. The component employs gold-plated copper alloy contacts with a 5 A current rating and offers an insulation resistance of 5 GOhms. Designed for panel mounting at a vertical angle, it uses solder lug termination and features a green thermoplastic insulator body.

Feature Summary

Dual-edge female contact design accommodates non-specified double-sided PCBs
Gold-plated copper alloy contacts ensure reliable electrical connectivity
Vertical panel mount style with solder lug termination for secure installation

Applications

Industrial control system interconnections
Telecommunications equipment backplanes
Test and measurement instrument interfaces

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count, plating thickness, and flange characteristics. Ensure the target PCB thickness falls within the specified acceptance range. Confirm RoHS compliance status and environmental ratings prior to final procurement approval.

Selection Notes

Select this component when a dual-row card edge interface with 3.96 mm pitch is required. Verify that the application environment supports the specified operating temperature range. Ensure mechanical clearance allows for the vertical panel mount orientation and solder lug profile.

Part Context

This part belongs to the EDAC 306 Series, which provides standard card edge connectors for general-purpose applications. The series offers various position counts and mounting styles. This specific model represents a high-density dual-row option suitable for robust industrial environments requiring reliable signal transmission.

Replacement Considerations

Cross-reference compatible parts from the same EDAC 306 family or equivalent manufacturers offering identical 3.96 mm pitch dual-row specifications. Verify mechanical footprint and terminal compatibility before substitution.
