Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 44POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：22
- Number of Positions：44
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

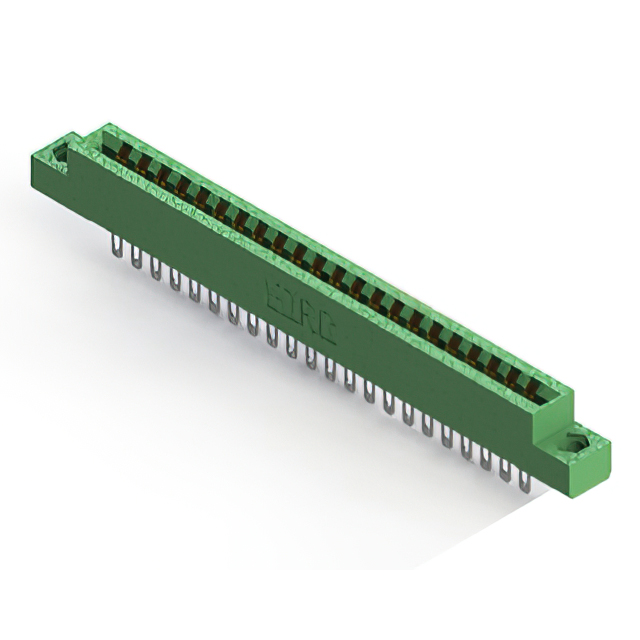

The EDAC Inc. model 306-022-500-104 is a standard card edge connector from the 306 Series. It features a dual female configuration with 44 positions arranged in a single centerline row. The contact spacing is 0.156 inches (3.96 mm). The insulator body is green and designed for low profile applications. It accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm).
Feature Summary
- Dual female contact configuration for secure card edge mating.
- Single centerline row design accommodating specific board layouts.
- Low profile insulator body suitable for space-constrained assemblies.
Applications
- Industrial control systems requiring reliable card edge interfaces.
- Communication equipment utilizing modular board architectures.
- Test and measurement devices needing standardized connectivity.
Procurement Notes
Verify the exact part number against official manufacturer documentation to ensure compatibility with your specific application requirements. Confirm that the single centerline row configuration matches your PCB design constraints. Check for any recent product change notifications or updates from EDAC Inc. regarding material specifications or manufacturing processes before finalizing procurement decisions.
Selection Notes
Select this component when a dual female card edge connector with 0.156-inch spacing is required. Ensure the target PCB thickness aligns with the 0.062-inch nominal specification. Consider the low profile requirement if vertical clearance is limited. Verify that the single row layout fits within the available board area without interfering with adjacent components.
Part Context
This connector belongs to the EDAC 306 Series, which focuses on standard card edge solutions. The series offers various pin counts and configurations to support diverse electronic assembly needs. The 306-022-500-104 variant specifically addresses applications requiring a 44-position interface with precise alignment capabilities for robust electrical connections.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult EDAC Inc. directly for potential cross-reference options or updated series replacements if this specific model is discontinued or unavailable.
