Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 44POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：22
- Number of Positions：44
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

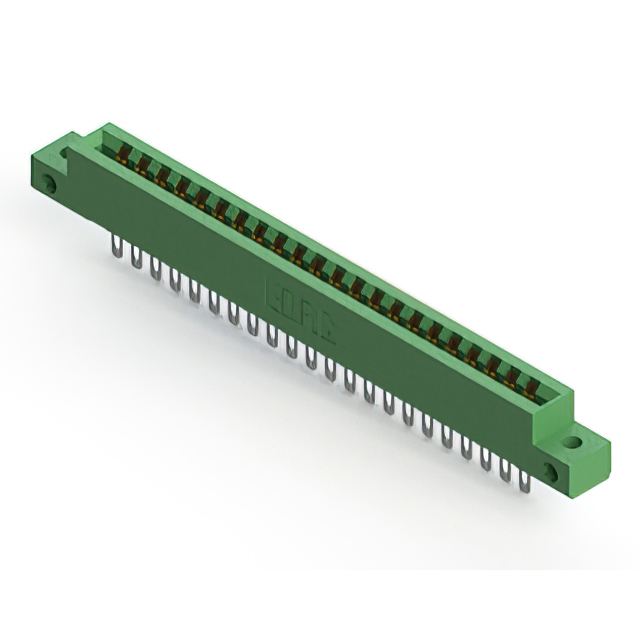

The EDAC Inc. part number 306-022-500-112 is a dual female card edge connector featuring 44 positions arranged in two rows. It utilizes a 0.156-inch (3.96 mm) contact spacing with a single centerline row configuration. The connector is designed to accept printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Constructed with a low-profile insulator body, it supports panel mount installation and offers vertical orientation for reliable signal transmission in electronic assemblies.
Feature Summary
- Dual female termination design accommodating standard board thicknesses
- Low-profile insulator body construction for compact integration
- Single centerline row configuration with precise contact spacing
Applications
- Panel-mounted electronic interface modules
- High-density signal routing assemblies
- Industrial control system interconnects
Procurement Notes
Verify the specific manufacturer datasheet for the 306-022-500-112 to confirm current RoHS compliance status and environmental certifications. Ensure that the receiving facility has appropriate handling procedures for sensitive electronic components. Cross-reference the official EDAC documentation to validate mechanical dimensions against the target PCB layout before finalizing procurement orders.
Selection Notes
Select this component when a dual-row female card edge connector with 0.156-inch spacing is required for panel mounting applications. The 44-position count and 0.062-inch board thickness compatibility define its primary use case. Consider the vertical orientation and low-profile housing constraints during mechanical design integration to ensure proper fit within the enclosure.
Part Context
This component belongs to the EDAC card edge connector family, specifically designed for high-reliability interconnect solutions. The series provides various termination options and mounting styles. The 306 series typically features thermoplastic polyester housing materials and copper alloy contacts, supporting standard industrial operating temperatures and current ratings for general-purpose electronic applications.
Replacement Considerations
Direct substitutes must match the 44-position count, 0.156-inch pitch, and dual female configuration. Verify housing material compatibility and panel mount requirements. Consult EDAC official cross-reference lists for verified alternative part numbers with identical mechanical and electrical specifications.
