306-022-500-158

Overview

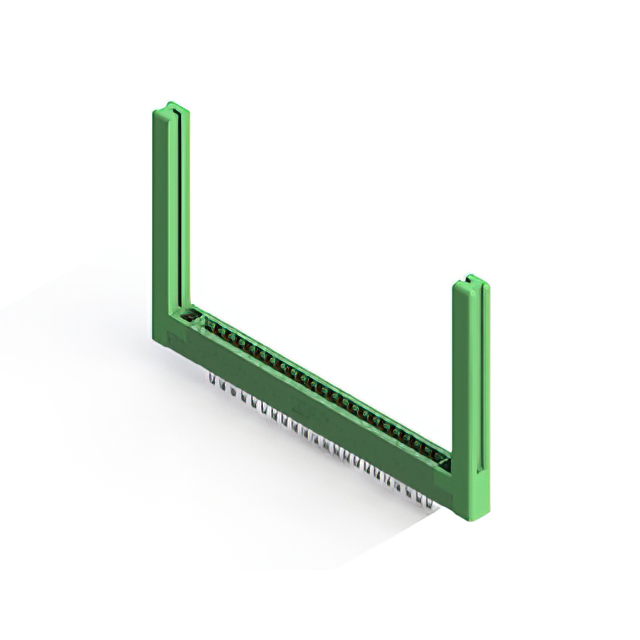

The EDAC Inc. 306-022-500-158 is a standard card edge connector featuring 44 positions with a 0.156-inch (3.96mm) contact spacing. It utilizes a dual-edge female configuration with gold-plated contacts and a green insulator body. Designed for nominal 0.062-inch (1.57mm) PCB thickness, this low-profile component supports reliable signal transmission in compact electronic assemblies.

Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated contacts ensure durable electrical connectivity
• Low-profile insulator body optimizes space within enclosures

Applications

• Medical interconnect solutions such as ventilators
• Ambulance communication systems
• CPAP machine internal connections

Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm pin count, pitch, and termination style. Ensure compatibility with target PCB thickness and mating card dimensions before procurement. Cross-reference datasheets for environmental ratings and material specifications to meet project requirements.

Selection Notes

Select this connector when a dual-edge interface with 0.156-inch spacing is required. The low-profile design suits applications with strict height constraints. Verify that the target printed circuit board accommodates the specified nominal thickness for proper mechanical engagement and electrical performance.

Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series provides various position counts and configurations for general-purpose electronic interconnections. The 306-022-500-158 variant specifically addresses needs for dual-edge mounting with defined spacing parameters.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult official EDAC catalogs or distributor databases for potential cross-references if original supply is unavailable.
