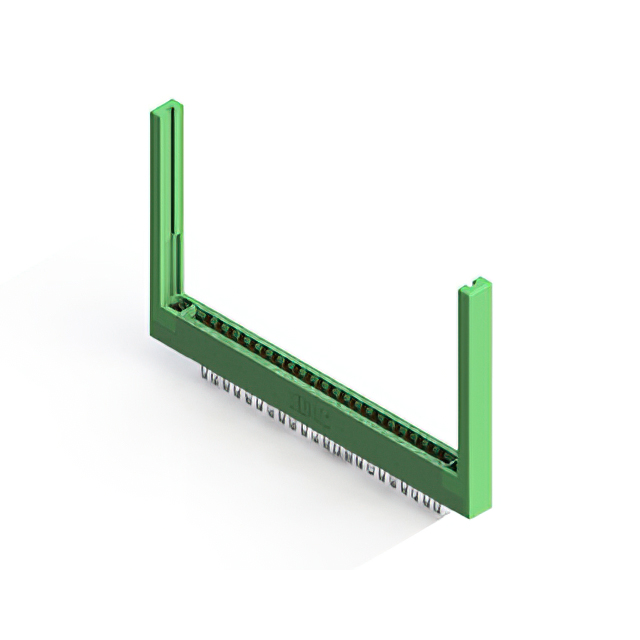

306-022-500-168

$13.20

Description：CONN EDGE DUAL FMALE 44POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:2c79c012cd94 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 44POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：22
Number of Positions：44
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-022-500-168

Overview

The EDAC Inc. 306-022-500-168 is a standard card edge connector designed for panel mounting applications. It features a dual female configuration with 44 positions arranged in two rows, providing a total of 22 positions per side. The connector utilizes a 3.96 mm (0.156 inch) contact spacing and accepts printed circuit boards with thicknesses ranging from 1.37 mm to 1.78 mm. Constructed with copper alloy contacts featuring gold plating, it ensures reliable signal transmission. The housing is made of green thermoplastic polyester, supporting an operating temperature range of -40°C to +105°C.

Feature Summary

Dual-edge female design accommodates non-specified board types
Gold-plated copper alloy contacts ensure durability
Panel mount installation with threaded flange inserts
Thermoplastic insulation body provides structural stability

Applications

Industrial control systems requiring robust interconnects
Communication equipment backplanes
Medical device internal connections
Energy sector instrumentation panels

Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm flange thread specifications and contact plating thickness. Ensure compatibility with target PCB thickness limits before procurement. Confirm RoHS compliance status through current manufacturer datasheets as regulatory requirements may evolve. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Selection Notes

Select this component when a dual-sided card edge interface is required for panel-mounted assemblies. The 3.96 mm pitch suits applications needing moderate density without excessive miniaturization. Verify that the target PCB thickness falls within the 1.37 mm to 1.78 mm operational window. Consider the threaded flange feature if secure mechanical retention against vibration is necessary for the deployment environment.

Part Context

This connector belongs to the EDAC 306 series, which specializes in standard card edge solutions. The series offers various position counts and mounting styles to support diverse electronic assembly needs. The 306-022 variant specifically addresses higher-density requirements compared to lower-position counterparts within the same family line.
