Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 44POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：22
- Number of Positions：44
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

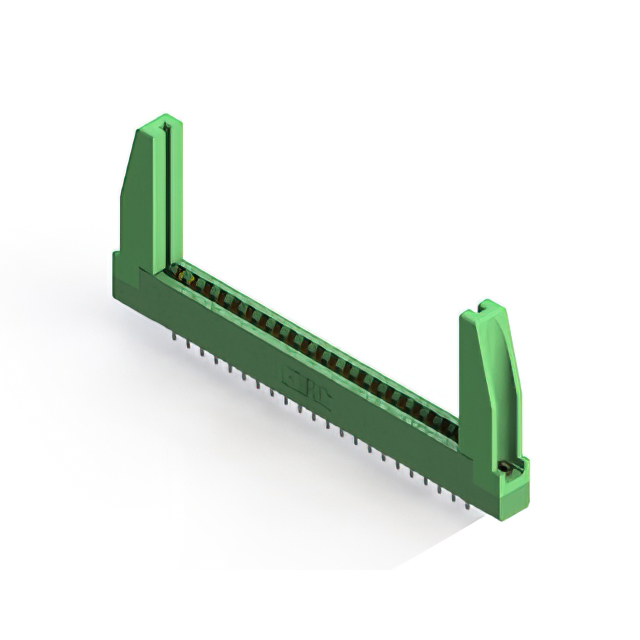

The EDAC Inc. 306-022-520-178 is a standard card edge connector from the 306 series, designed for through-hole mounting with a straight orientation. It features 44 positions arranged in a dual female configuration with a 0.156-inch (3.96 mm) contact spacing. The connector utilizes gold-plated copper alloy contacts and a thermoplastic polyester insulator body. Rated for 5 A current, it accommodates printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm).
Feature Summary
- Dual-edge female contact configuration for secure board insertion.
- Gold-plated copper alloy contacts ensure reliable signal transmission.
- Thermoplastic polyester insulator provides structural stability.
- Through-hole solder termination supports robust PCB integration.
Applications
- Industrial control system interconnections
- Telecommunications equipment backplanes
- Consumer electronics module interfaces
- Medical device circuit board connections
Procurement Notes
Verify the specific ordering suffix to confirm contact plating thickness and material composition, as variations may exist within the 306 series. Ensure compatibility with the target PCB thickness of 1.57 mm before procurement. Confirm that the straight through-hole mounting style aligns with the mechanical assembly requirements. Cross-reference the manufacturer datasheet for precise dimensional tolerances and environmental operating limits to guarantee long-term reliability in the intended application environment.
Selection Notes
Select this component when a dual-edge female connector with 3.96 mm spacing is required for high-current applications up to 5 A. The choice is driven by the need for gold-plated contacts to minimize contact resistance and corrosion. Consider the 1.57 mm board thickness constraint and the through-hole mounting method. This model is suitable for environments requiring durable thermoplastic polyester insulation and standardized industrial form factors.
Part Context
This part belongs to the EDAC 306 Series, which specializes in standard card edge connectors with 0.156-inch spacing. The series offers various position counts and mounting styles, catering to diverse electronic assembly needs. The 306-022-520-178 specifically addresses the demand for a 44-position dual-edge solution with robust through-hole termination capabilities.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify pin count, spacing, and mounting style compatibility if considering alternative manufacturers.
FAQ
What is the maximum current rating for this connector?
The connector has a current rating of 5 A.
Does this connector support single-sided or double-sided cards?
It is designed for dual-edge cards, providing contacts on both sides of the board.
What is the recommended PCB thickness for this model?
The connector accepts a nominal PCB thickness of 0.062 inches (1.57 mm).
