306-022-521-101

$10.81

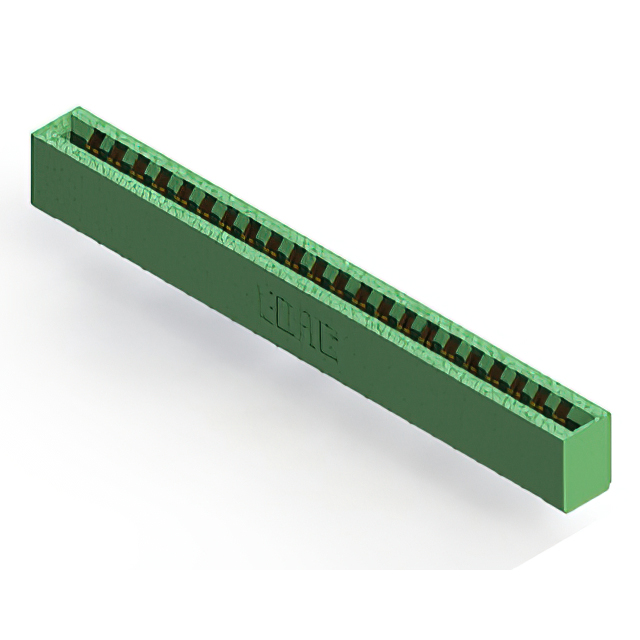

Description：CONN EDGE DUAL FMALE 44POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:1eb3981c645f Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 44POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：22
Number of Positions：44
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Download product information

306-022-521-101

Overview

The EDAC Inc. 306-022-521-101 is a dual-sided card edge connector from the 306 Series, featuring 44 positions with a 0.156-inch (3.96mm) contact spacing. It utilizes gold-plated contacts and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The component employs a low-profile insulator body and single centerline row design for reliable signal transmission in vertical mounting configurations.

Feature Summary

Dual female contact configuration for secure board insertion
Gold-plated contacts ensure durable electrical connectivity
Low-profile insulator body reduces overall assembly height
Single centerline row design simplifies routing alignment

Applications

Industrial control system interface modules
Telecommunications equipment backplanes
Computing hardware expansion slots

Procurement Notes

Verify that the specific part number matches the required 44-position dual-sided specification. Confirm compatibility with 0.062-inch PCB thickness standards. Ensure sourcing channels provide original manufacturer documentation to validate contact plating integrity and series consistency before final procurement decisions.

Selection Notes

Select this connector when dual-sided engagement is required for high-density signal paths. The 0.156-inch pitch accommodates standard industrial board layouts. Consider the low-profile form factor for space-constrained enclosures requiring vertical mating interfaces without excessive height penalties.

Part Context

This component belongs to the EDAC 306 Series, designed for standard card edge applications. The series emphasizes robust mechanical retention and consistent electrical performance across various industrial environments. The specific model represents a mid-range position count within the product family.

Replacement Considerations

Cross-reference with other EDAC 306 Series variants for position count adjustments. Verify identical 0.156-inch pitch and 0.062-inch board thickness compatibility before substituting with alternative manufacturers' offerings.
