306-022-521-108

Overview

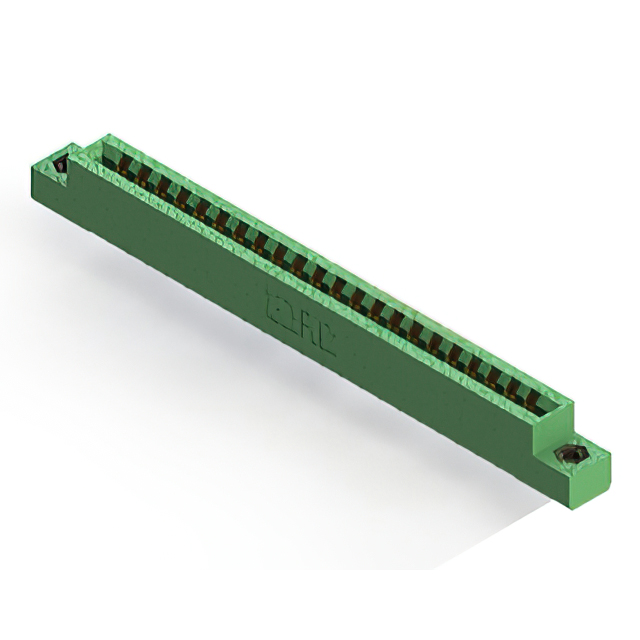

The EDAC Inc. model 306-022-521-108 is a dual female card edge connector featuring 22 positions with a 3.96 mm pitch. It accepts printed circuit boards with a nominal thickness of 1.57 mm. The component utilizes gold-plated contacts and is designed for panel mounting in a vertical orientation.

Feature Summary

• Dual female contact configuration for secure board insertion
• Gold plating on contact areas for reliable conductivity
• Vertical panel mount installation style

Applications

• Card edge interconnect systems
• Panel mounted electronic assemblies
• Industrial control hardware

Procurement Notes

Verify the specific part number against manufacturer documentation to ensure compatibility with required board thicknesses and contact configurations. Confirm that the dual female termination type aligns with the target PCB design specifications before finalizing procurement orders.

Selection Notes

Select this component when a 22-position interface with 3.96 mm spacing is required. Ensure the application supports vertical panel mounting and accommodates 1.57 mm thick circuit boards. Verify that gold-plated contacts meet the environmental requirements for the intended operational conditions.

Part Context

This connector belongs to the EDAC 306 series, which provides standard card edge solutions. The series offers various position counts and termination options, serving as a foundational interconnect option for computing, storage, and industrial applications requiring robust panel-mounted connections.

Replacement Considerations

Cross-reference alternative part numbers within the same EDAC 306 series family to find equivalents with matching position counts and pitch specifications. Ensure any substitute maintains the dual female contact configuration and compatible board thickness tolerance.
