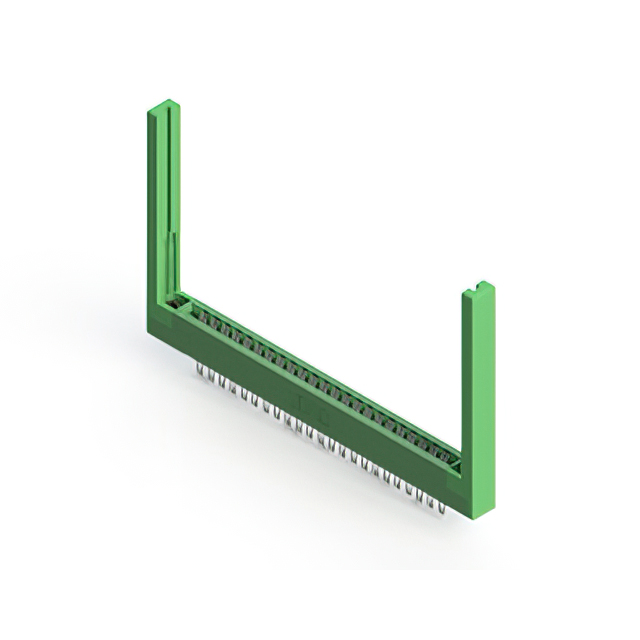

306-023-400-168

$13.79

Description：CONN EDGE DUAL FMALE 46POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:3890161927f6 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 46POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：23
Number of Positions：46
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-023-400-168

Overview

The EDAC Inc. 306-023-400-168 is a dual-edge female card edge connector designed for through-hole mounting. It features 46 positions with a 0.156-inch (3.96mm) pitch. The connector utilizes gold-plated contacts and a green thermoplastic insulator, supporting board thicknesses within standard specifications.

Feature Summary

Dual-edge female configuration for secure board insertion
Through-hole termination for robust PCB attachment
Gold contact plating for reliable signal transmission

Applications

Industrial control systems
Telecommunications equipment
Consumer electronics modules

Procurement Notes

Verify the specific series designation and pin count against official EDAC documentation before procurement. Confirm that the dual-edge requirement aligns with the target printed circuit board design to ensure mechanical compatibility and proper electrical connection.

Selection Notes

Select this component when a dual-sided card interface is required. Ensure the mating board thickness falls within the connector's specified range. Verify that the 0.156-inch pitch matches the existing layout constraints and that through-hole assembly methods are supported by the manufacturing process.

Part Context

This part belongs to the EDAC 306 series of edgeboard connectors. It provides a high-density interconnect solution for applications requiring dual-edge access. The series is known for its reliability in industrial and commercial environments where stable connections are critical.

Replacement Considerations

Check for direct substitutes within the EDAC 306 series or compatible 307/357 series variants if dual-edge functionality can be relaxed. Verify pin count and pitch compatibility before considering alternative manufacturers.
