306-023-500-101

Overview

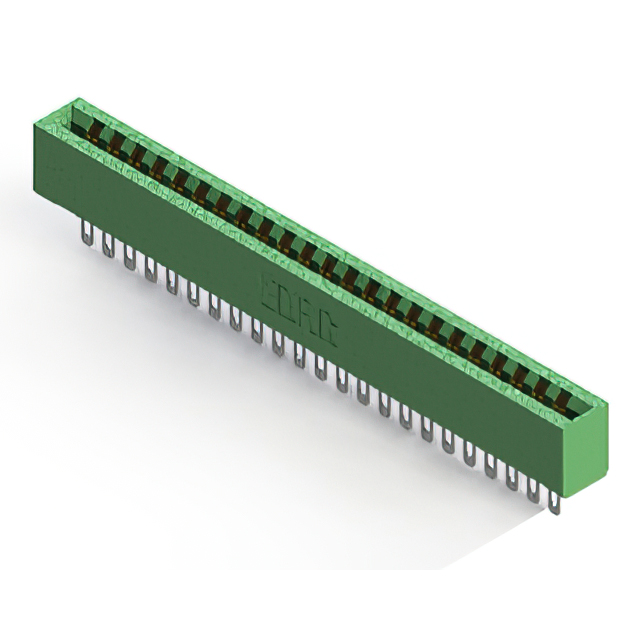

The EDAC Inc. 306-023-500-101 is a dual-edge female card edge connector from the 306 series, designed for through-hole termination. It features 46 positions with a 0.156-inch (3.96mm) contact spacing and gold-plated copper alloy contacts. The unit utilizes a green thermoplastic housing and supports board thicknesses of 0.054 to 0.070 inches. Rated for -40°C to 105°C, it ensures reliable electrical interconnection in standard edgeboard applications.

Feature Summary

• Dual-edge female configuration for secure board insertion
• Gold-plated copper alloy contacts for corrosion resistance
• Through-hole solder lug termination method

Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Computer peripheral module connections

Procurement Notes

Verify the specific suffix codes against the manufacturer's official ordering guide to ensure correct contact geometry and plating specifications. Confirm that the target PCB design accommodates the required 0.156-inch pitch and panel mounting constraints before finalizing procurement orders.

Selection Notes

Select this component when a dual-sided connection is required for high-density signal routing. Ensure the host PCB thickness falls within the specified 0.054 to 0.070-inch range to guarantee proper mechanical retention and electrical contact integrity during operation.

Part Context

This part belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series offers various position counts and termination styles, providing engineers with modular solutions for diverse electronic assembly requirements across multiple industrial sectors.

Replacement Considerations

Direct substitutes include other EDAC 306-series variants with matching 46-position dual-edge configurations. Verify compatibility with existing PCB footprints and mating card dimensions before swapping components.
