Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 46POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：23
- Number of Positions：46
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

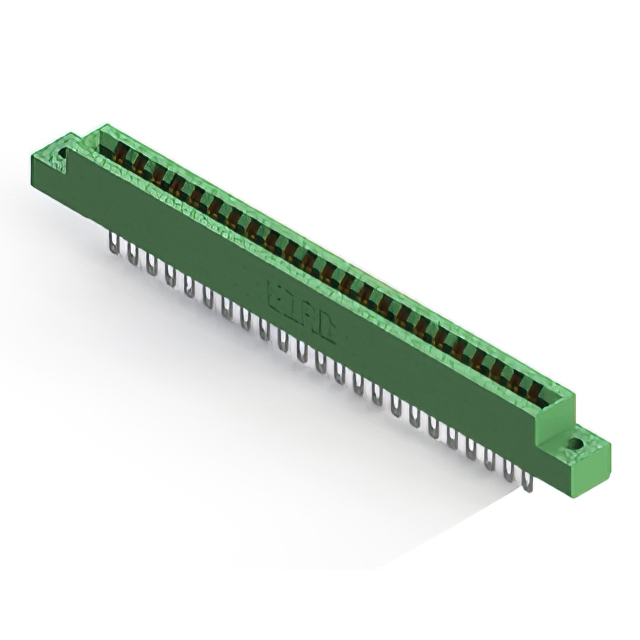

The EDAC Inc. 306-023-500-102 is a standard card edge connector from the 306 series, designed for dual-sided board insertion. It features 46 positions with a 0.156-inch (3.96 mm) contact spacing and accepts printed circuit boards with a thickness range of 0.054 to 0.070 inches (1.37 to 1.78 mm). The connector utilizes copper alloy contacts with tin plating and a green thermoplastic polyester insulator. It supports panel mount installation with vertical orientation and offers a low-profile body design.
Feature Summary
- Dual female contact configuration for secure double-sided card edge engagement
- Low profile insulator body construction for compact system integration
- Vertical panel mount style with standardized mounting flange dimensions
Applications
- Industrial control systems requiring robust card edge interfaces
- Telecommunications equipment with high-density signal routing needs
- Test and measurement instrumentation utilizing modular board architectures
Procurement Notes
Verify that the specific ordering suffix matches the required contact termination and insulation material specifications. Confirm compatibility with the target PCB thickness range and mounting hole alignment prior to purchase. Ensure the tin-plated contact finish meets the environmental requirements for the intended application environment.
Selection Notes
Select this component when a dual-row, 46-position interface with 3.96 mm pitch is required. Consider the tin-plated contacts for general-purpose applications rather than high-corrosion environments. Evaluate the vertical panel mount style against available chassis space and ensure the low-profile body fits within strict height constraints.
Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series provides various position counts and termination options. The 306-023-500-102 specifically addresses the need for a dual-sided connection with a 46-position capacity, distinguishing it from single-sided variants in the same family.
Replacement Considerations
Cross-reference with other EDAC 306 series parts for alternative position counts or plating finishes. Verify mechanical footprint compatibility before substituting with connectors from different manufacturers.
