306-023-500-107

Overview

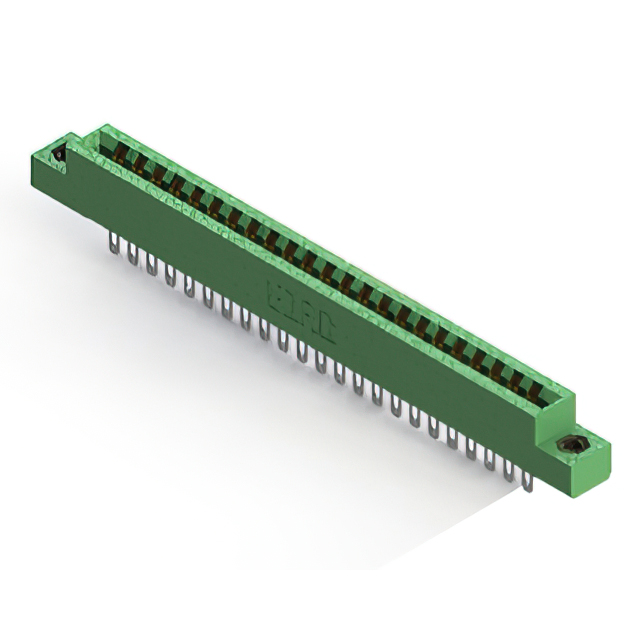

The EDAC Inc. 306-023-500-107 is a standard card edge connector featuring 23 positions in a single row. It utilizes a 0.156-inch (3.96 mm) contact spacing and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The component employs female solder terminals with gold plating on copper alloy contacts. Designed for panel mount installation, it includes M3x0.5 threaded inserts for secure attachment. The insulator body is constructed from green thermoplastic polyester, ensuring reliable electrical performance within the specified operating temperature range.

Feature Summary

• Accepts PCBs with a nominal thickness of 0.062 inches (1.57 mm)
• Features low profile insulator body construction
• Incorporates M3x0.5 threaded inserts for panel mounting

Applications

• Panel-mounted electronic interconnect systems
• Single-row card edge interface applications
• Industrial control hardware connections

Procurement Notes

Verify that the specific application requires a single-row configuration with 0.156-inch pitch to ensure mechanical compatibility. Confirm that the target printed circuit board thickness aligns with the 0.062-inch nominal specification for proper insertion force and retention. Ensure the mounting panel accommodates the M3x0.5 threaded insert dimensions. Cross-reference the gold-plated terminal requirements against environmental exposure conditions to validate long-term conductivity stability.

Selection Notes

Select this component when a single-row female connector is required for vertical panel mounting. Choose this part if the design mandates a 0.156-inch pitch to match existing backplane or cable harness standards. Consider this model for applications requiring robust mechanical fixation via threaded inserts rather than snap-fit methods. Evaluate the thermoplastic polyester housing material against chemical resistance requirements for the intended operational environment.

Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by its versatility in accepting various board thicknesses through different suffix variations. The 306 series typically features thermoplastic polyester insulators and gold-plated copper alloy contacts. This specific part number represents a single-row variant optimized for panel-mount installations using threaded hardware.

Replacement Considerations

Compatible substitutes include other EDAC 306 series parts with matching 23-position counts and 0.156-inch pitch. Verify that alternative models maintain the same M3x0.5 threaded insert specifications for direct mechanical interchangeability.
