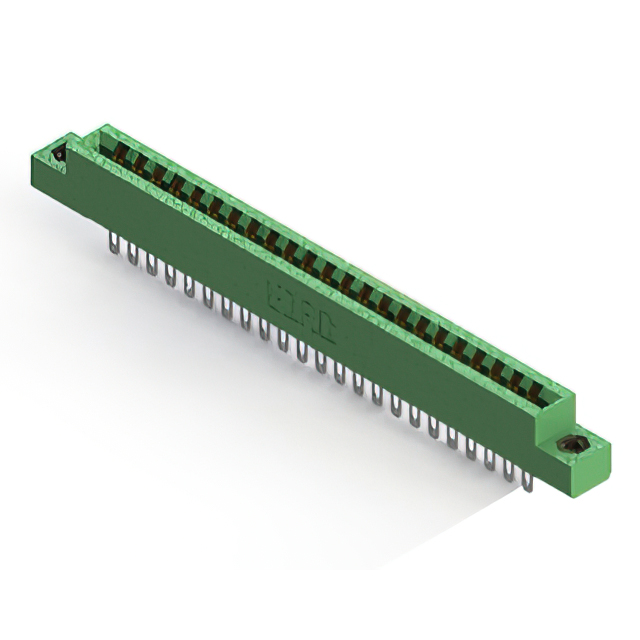

306-023-500-108

$13.18

Description：CONN EDGE DUAL FMALE 46POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:fc4601447679 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 46POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：23
Number of Positions：46
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-023-500-108

Overview

The EDAC Inc. 306-023-500-108 is a dual female card edge connector designed for through-hole mounting. It features 46 positions with a 0.156-inch pitch and utilizes gold-plated copper alloy contacts. The housing is constructed from thermoplastic polyester, providing insulation for standard single-sided or double-sided circuit boards.

Feature Summary

Dual female contact configuration for reliable board insertion
Through-hole termination method for secure PCB attachment
Gold plating on copper alloy contacts to ensure conductivity

Applications

Single-sided printed circuit board interconnection
Double-sided printed circuit board interconnection
Standard card edge connector applications requiring high reliability

Procurement Notes

Verify the specific suffix against official EDAC documentation to confirm exact pin count, plating thickness, and insulator material. Ensure compatibility with target board thickness and mounting requirements before procurement.

Selection Notes

Select this component when a dual-row female interface is required for vertical board insertion. Confirm that the 0.156-inch pitch matches the design layout and that through-hole assembly aligns with manufacturing capabilities.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various row configurations and termination options, serving as a fundamental interconnect solution for electronic assemblies requiring robust mechanical and electrical connections.

Replacement Considerations

Consult official EDAC cross-reference guides for verified substitutes. Generic equivalents may differ in critical dimensions such as contact retention force or insulator flammability ratings.
