306-023-520-101

Overview

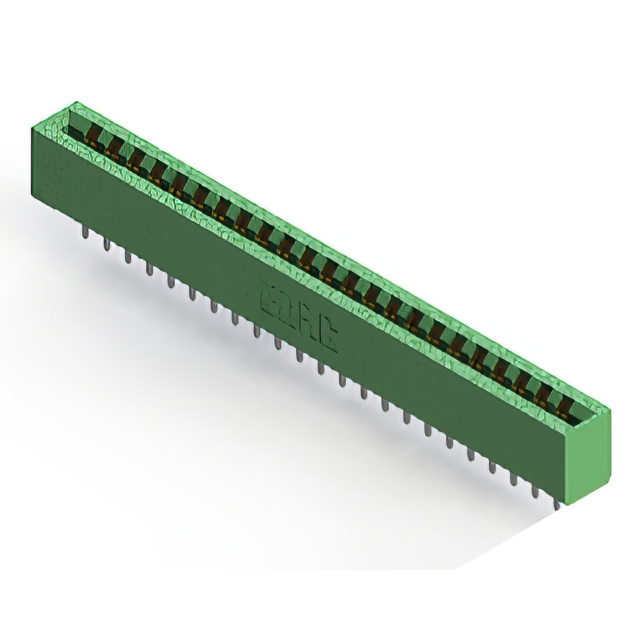

The EDAC Inc. 306-023-520-101 is a dual-edge female card edge connector designed for vertical panel or PCB mounting. It features 46 positions with a 0.156-inch (3.96 mm) pitch and gold-plated copper alloy contacts. The unit utilizes a green thermoplastic housing and supports board thicknesses of 1.57 mm. Rated for 5 A current, it offers 5 GOhms insulation resistance and operates within a temperature range of -40°C to +105°C.

Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated copper alloy terminals ensure reliable conductivity
• Thermoplastic polyester housing provides structural stability

Applications

• Vertical panel mount interconnects
• PCB mounting applications
• High-density signal routing

Procurement Notes

Verify the specific suffix against official EDAC documentation to confirm exact pin count, pitch, and termination style. Ensure compatibility with target board thickness and operating temperature requirements before procurement. Cross-reference manufacturer part numbers to avoid substitution errors.

Selection Notes

Select this component for applications requiring dual-edge connectivity with a standard 3.96 mm pitch. Confirm that the 5 A current rating and 5 GOhms insulation resistance meet system electrical specifications. Verify mechanical fit for vertical orientation and required board thickness constraints.

Part Context

This connector belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by robust thermoplastic housings and gold-plated contacts suitable for industrial environments. The 306 series supports various position counts and mounting styles for diverse electronic assembly needs.

Replacement Considerations

Consult official EDAC cross-reference guides for verified substitutes. Generic equivalents may not match the precise 3.96 mm pitch or dual-edge geometry required for proper mating.
