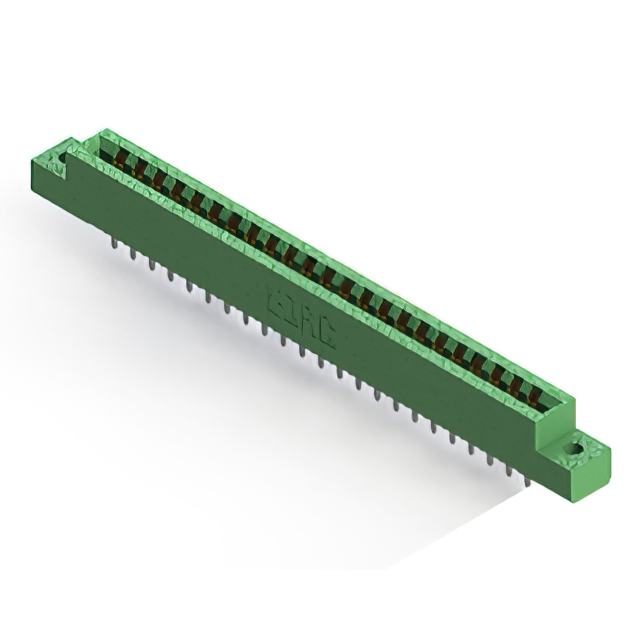

306-023-520-102

$11.42

Description：CONN EDGE DUAL FMALE 46POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:93bd83c70edb Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 46POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：23
Number of Positions：46
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-023-520-102

Overview

The EDAC Inc. model 306-023-520-102 is a standard card edge connector header designed for panel mount applications. It features 23 positions with a contact spacing of 3.96 mm (0.156 inches). The component accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). Electrical specifications include a current rating of 5 A and an insulation resistance of 5 GOhms. The contacts are constructed from copper alloy with gold plating, while the insulator body is made of thermoplastic material.

Feature Summary

Single centerline row configuration for compact panel integration
Gold-plated copper alloy contacts ensure reliable signal transmission
Thermoplastic insulator body provides structural stability

Applications

Medical interconnect solutions such as ventilators
Ambulance communication systems
CPAP machine connections

Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility with target PCB thickness and mounting requirements. Ensure that the gold-plated contact specifications meet the required electrical performance standards for the intended application environment before finalizing procurement decisions.

Selection Notes

Select this component when a single-row card edge header with 3.96 mm pitch is required for panel-mounted installations. The 23-position count and 5 A current rating suit moderate-density interconnect needs. Confirm that the host system accommodates the specified 1.57 mm board thickness constraint.

Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting styles, providing modular connectivity options for industrial and medical electronics. The 306-023-520-102 variant specifically addresses the need for robust, high-current connections in space-constrained panel applications.

Replacement Considerations

Compatible substitutes within the same series include models with identical pitch and position counts, such as the 306-024-520-102 for adjacent pin configurations. Verify mechanical dimensions and termination types to ensure direct interchangeability without redesigning the host panel or PCB layout.
