306-024-400-158

Overview

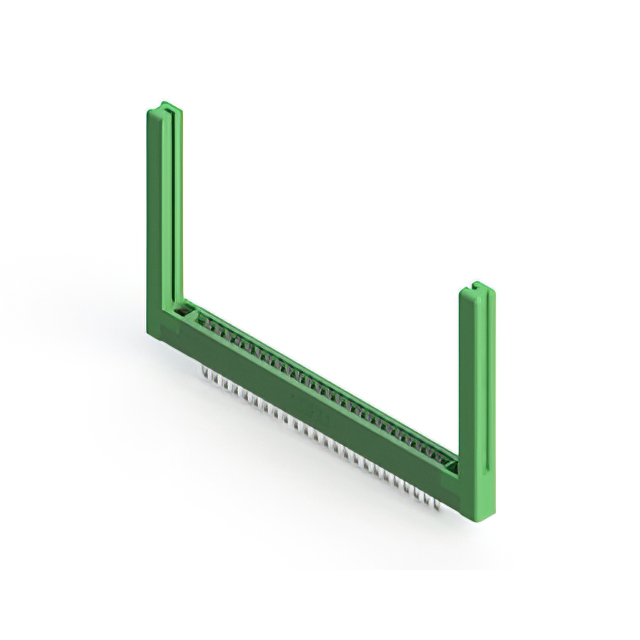

The EDAC Inc. 306-024-400-158 is a dual-edge female card edge connector featuring 56 positions with a 0.156-inch (3.96mm) pitch. Designed for panel and through-hole mounting, it utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. The unit supports non-specified dual edgeboards within a thickness range of 0.054 to 0.070 inches. It operates reliably across a temperature range of -40°C to 105°C and includes flange features for secure installation.

Feature Summary

• Dual-edge female configuration supporting non-specified edgeboards
• Gold-plated contacts on copper alloy substrates for durability
• Panel mount design with integrated flanges for stability

Applications

• Industrial control systems requiring robust interconnects
• Communication equipment board-to-board connections
• Consumer electronics internal module integration

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact plating and material specifications. Ensure compatibility with target PCB thickness and mounting hole patterns before procurement. Confirm RoHS compliance status matches project requirements. Cross-reference the base product number 306-024 with current EDAC documentation to validate active status and any recent engineering changes.

Selection Notes

Select this component when a high-density 56-position interface is required with a standard 0.156-inch spacing. The dual-edge design accommodates complex circuit routing on both sides of the substrate. Consider the operating temperature range and environmental exposure to determine if additional sealing or specialized materials are necessary for the specific application environment.

Part Context

This part belongs to the EDAC 306 series, which specializes in card edge connectors for various industrial and commercial applications. The series offers multiple row configurations and mounting options. The 306-024 variant specifically addresses needs for higher pin counts while maintaining the structural integrity and electrical performance characteristic of the broader family.

Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for direct substitutes with differing position counts or termination styles. Verify mechanical dimensions and electrical ratings match before swapping components.
