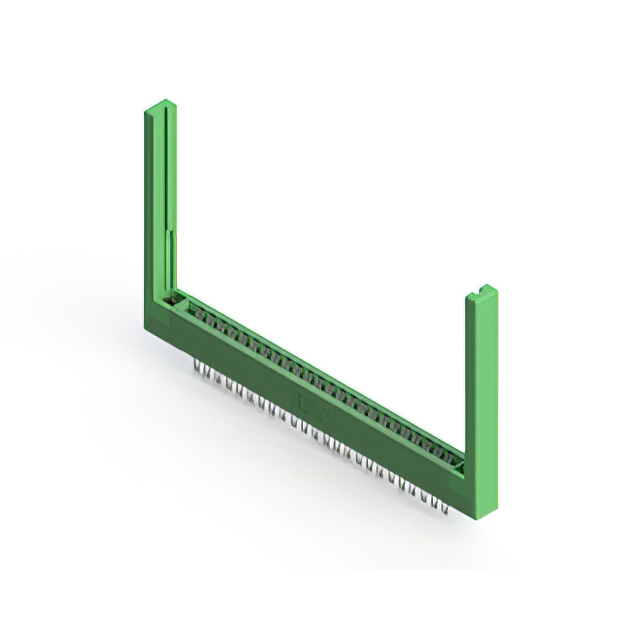

306-024-400-168

$14.37

Description：CONN EDGE DUAL FMALE 56POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:b4a02cec9f12 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 56POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：24
Number of Positions：56
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-024-400-168

Overview

The EDAC Inc. 306-024-400-168 is a standard card edge connector featuring 56 contacts arranged in a single row. It utilizes a 0.156-inch (3.96mm) pitch with female solder eyelet terminals. The component accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). It incorporates a green insulator body and includes locking features for secure attachment.

Feature Summary

Single centerline row configuration with 0.156 inch contact spacing
Solder eyelet termination style for board mounting
Low profile insulator body design
Integrated locking mechanism for secure connection

Applications

Standard card edge interface connections
Electronic module interconnects
Industrial control system backplanes

Procurement Notes

Verify the specific contact count and termination type against official EDAC documentation before procurement. Confirm that the required PCB thickness matches the 0.062-inch specification to ensure proper mechanical engagement. Check for any updated environmental compliance certifications or packaging variations in the latest datasheet revision.

Selection Notes

Select this connector when a single-row, 56-position interface is required with solder eyelet termination. Ensure the mating card edge meets the 0.062-inch thickness tolerance. Consider the green insulator color for visual identification if applicable to the assembly process. Verify that the locking feature aligns with the enclosure design requirements.

Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various contact counts and termination options. The 306-024-400-168 specifically provides a high-density single-row solution suitable for applications requiring robust mechanical retention through its locking design.

Replacement Considerations

Consult official EDAC cross-reference documents for verified substitute part numbers. Generic equivalents may not match the specific solder eyelet termination or locking mechanism characteristics.
