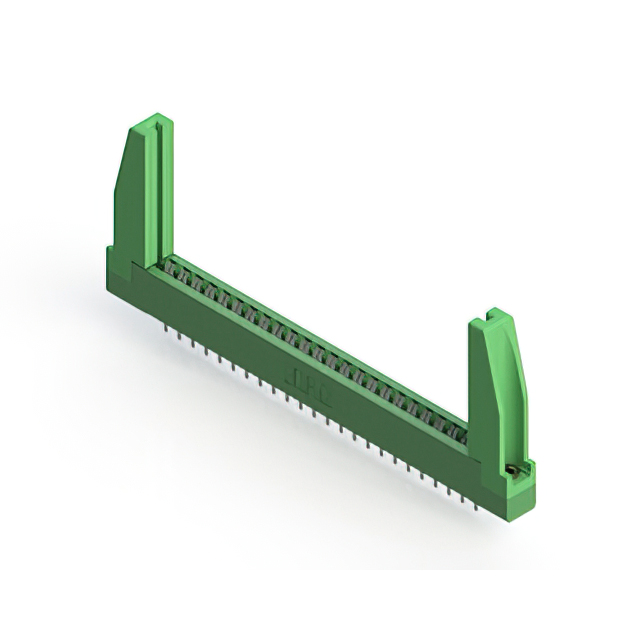

306-024-420-178

$14.37

Description：CONN EDGE DUAL FMALE 56POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:511fbd66c874 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 56POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：24
Number of Positions：56
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-024-420-178

Overview

The EDAC Inc. 306-024-420-178 is a standard card edge connector from the 306 Series, designed for high-reliability applications. It features 56 positions with a .156" (3.96mm) contact spacing and accepts .062" (1.57mm) nominal thickness PCBs. The connector utilizes dual female contacts with tin plating over nickel. Key physical dimensions include .046 x .015" tails and a low-profile insulator body. This component supports panel mount installation and is engineered for robust electrical connectivity in industrial environments.

Feature Summary

Dual row female contact configuration for secure board insertion
Low profile insulator body design for space-constrained assemblies
Tin-plated PC tail contacts for reliable soldering performance

Applications

Industrial control systems requiring durable interconnects
Communication equipment signal routing
Medical device circuit board integration

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct contact type and plating specifications. Confirm that the required PCB thickness matches the .062" nominal tolerance. Check for any updated environmental compliance certifications prior to final procurement approval.

Selection Notes

Select this model when a dual-row card edge interface with .156" spacing is required. Ensure the application environment does not exceed the thermal ratings of tin-plated contacts. Verify that the panel mount style aligns with the mechanical housing requirements of the target assembly.

Part Context

This component belongs to the EDAC 306 Series, which specializes in standard card edge connectors. The series is characterized by its .156" contact spacing and versatile mounting options. EDAC designs these connectors to meet rigorous industrial standards for durability and signal integrity across various electronic sectors.

Replacement Considerations

Consult the official EDAC cross-reference guide for direct substitutes. Verify that alternative parts maintain identical .156" spacing and 56-position count. Ensure mechanical compatibility with existing panel cutouts and PCB layouts before substitution.
