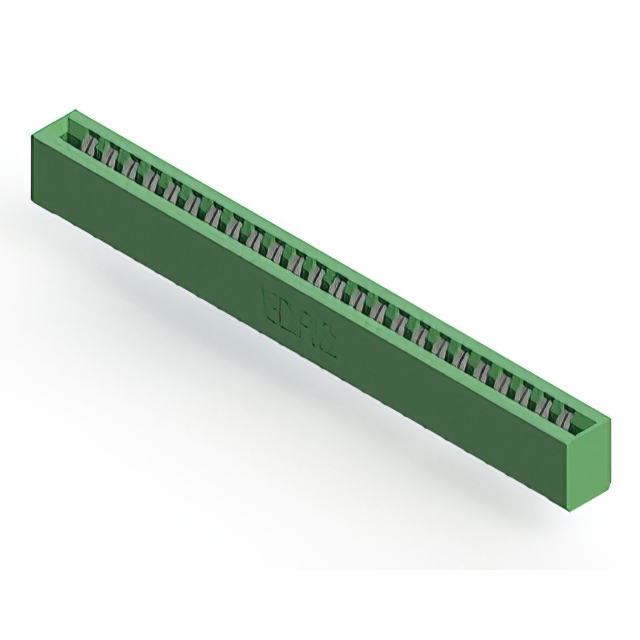

306-024-421-101

$12.01

Description：CONN EDGE DUAL FMALE 56POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:7f94118e720f Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 56POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：24
Number of Positions：56
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Download product information

306-024-421-101

Overview

The EDAC Inc. model 306-024-421-101 is a standard card edge connector receptacle featuring 56 positions with a 3.96 mm pitch. Designed for panel mount installation, it utilizes a vertical orientation and solder pin termination. The contacts are constructed from copper alloy with tin plating to ensure reliable signal transmission. It accommodates board thicknesses ranging from 1.37 mm to 1.78 mm and operates within a temperature range of -40°C to +105°C.

Feature Summary

Dual-edge female contact configuration for secure board insertion
Thermoplastic polyester housing provides structural stability
Vertical panel mount design facilitates organized circuit integration

Applications

Industrial control system interconnections
Telecommunications equipment backplanes
Computing hardware module interfaces

Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm contact plating and housing color specifications. Ensure compatibility with target PCB thickness limits before procurement. Confirm RoHS compliance status through current manufacturer datasheets. Validate that the dual-edge requirement matches the application's mechanical constraints. Cross-reference the 56-position count with schematic requirements.

Selection Notes

Select this component when a high-density 56-position interface is required with a 3.96 mm spacing. The tin-plated contacts offer cost-effective conductivity suitable for general applications. Consider the vertical mounting style for space-constrained panel layouts. Verify that the thermoplastic polyester material meets environmental resistance needs.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and termination options. It serves as a reliable interface solution for edgeboard connections in electronic assemblies requiring robust mechanical retention and electrical continuity.

Replacement Considerations

Consult official EDAC substitution guides for verified alternatives. Ensure replacement parts maintain identical pitch, position count, and mounting style. Verify that any substitute matches the thermal and electrical ratings of the original component.
