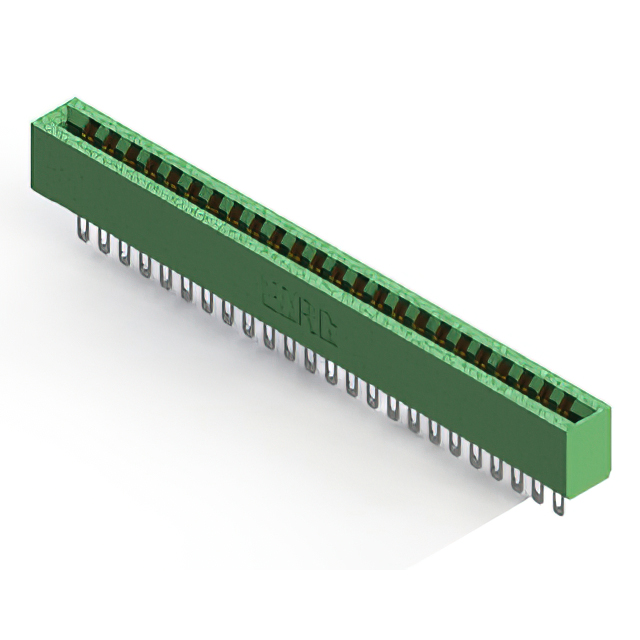

306-024-500-101

$12.01

Description：CONN EDGE DUAL FMALE 56POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:4a611daded1a Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 56POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：24
Number of Positions：56
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Free Hanging (In-Line)
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Download product information

306-024-500-101

Overview

The EDAC Inc. model 306-024-500-101 is a standard card edge connector receptacle featuring 56 positions with dual female contacts. It utilizes a 3.96 mm (0.156 inch) pitch and supports a board thickness of 1.57 mm. The component employs gold-plated copper alloy contacts for reliable signal transmission and solder pin termination. Designed for vertical panel mount installation, the housing is constructed from green thermoplastic polyester. This series provides robust interconnection capabilities for high-density circuit board applications.

Feature Summary

Dual edge female contact configuration for secure card insertion
Gold-plated copper alloy contacts ensure durable electrical performance
Vertical panel mount design facilitates structured assembly integration

Applications

High-density electronic module interconnection systems
Industrial control panel circuit board interfaces
Telecommunications equipment backplane connections

Procurement Notes

Verify the specific ordering suffix to confirm contact plating and housing color attributes. Ensure compatibility with the target PCB thickness of 1.57 mm before procurement. Confirm that the 56-position dual-edge specification matches the design requirements. Cross-reference the manufacturer datasheet for precise dimensional tolerances and mounting hole patterns to guarantee mechanical fit within the intended enclosure structure.

Selection Notes

Select this component when a 3.96 mm pitch is required for dual-sided card edge interfacing. The 56-position count suits applications needing substantial I/O density in a single connector footprint. Verify that the vertical orientation aligns with the system's mechanical layout constraints. Consider the thermoplastic polyester housing material for environmental resistance during operation.

Part Context

This part belongs to the EDAC 306 Series, which specializes in standard card edge connectors. The series offers various position counts and contact configurations to accommodate diverse board interface needs. The 306 line emphasizes reliability through gold-plated contacts and standardized pitch dimensions, ensuring broad compatibility across industrial and commercial electronic hardware platforms.
