Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 56POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：24
- Number of Positions：56
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

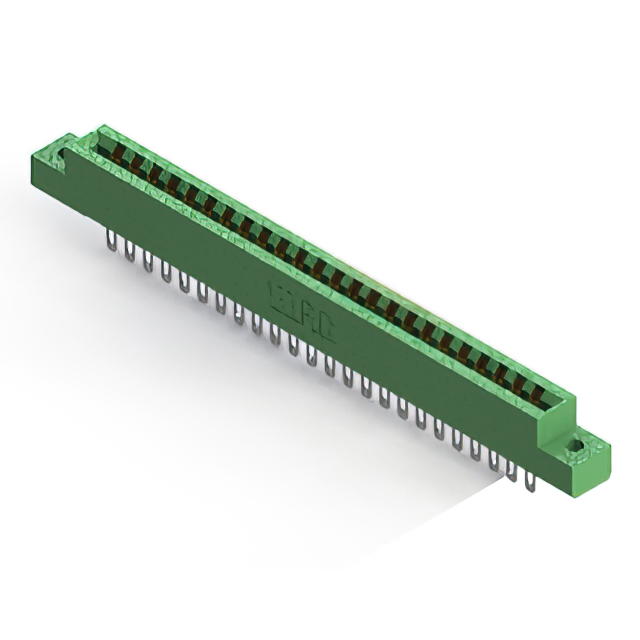

The EDAC Inc. 306-024-500-102 is a standard card edge connector from the 306 series, designed for panel mount applications with a vertical orientation. It features a dual female configuration with 24 positions and a contact spacing of 3.96 mm (0.156 inches). The connector supports a PCB thickness of 1.57 mm and utilizes copper alloy contacts with gold plating to ensure reliable signal transmission. Rated for 5 A current, it employs a thermoplastic polyester housing for insulation and durability.
Feature Summary
- Dual edge female contact configuration for secure board insertion
- Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
- Thermoplastic polyester housing providing structural stability and insulation
- Vertical panel mount style for standardized integration
Applications
- Industrial control system interconnects
- Telecommunications equipment backplanes
- Test and measurement instrument interfaces
- Automotive electronics modules
Procurement Notes
Verify the specific position count and contact spacing against design requirements before procurement. Confirm that the gold plating specification meets environmental durability needs. Ensure the panel mount vertical orientation aligns with mechanical assembly constraints. Cross-reference the manufacturer part number to avoid confusion with similar series variants.
Selection Notes
Select this component when a robust dual-edge card edge interface is required for high-reliability applications. The 3.96 mm pitch accommodates standard board layouts while maintaining signal integrity. Consider the 5 A current rating for power distribution capabilities. Verify compatibility with the target PCB thickness and mounting style during the design phase.
Part Context
This connector belongs to the EDAC 306 series, which offers various configurations for card edge applications. The series provides options for different position counts and mounting styles. The 306-024-500-102 specifically addresses needs for 24-position dual-edge connections with vertical panel mounting capabilities.
Replacement Considerations
Direct substitutes within the same series may include other 306 model numbers with matching pitch and position counts. Verify electrical ratings and mechanical dimensions before substitution. Consult official EDAC documentation for cross-reference lists to ensure functional equivalence.
