306-024-500-104

Overview

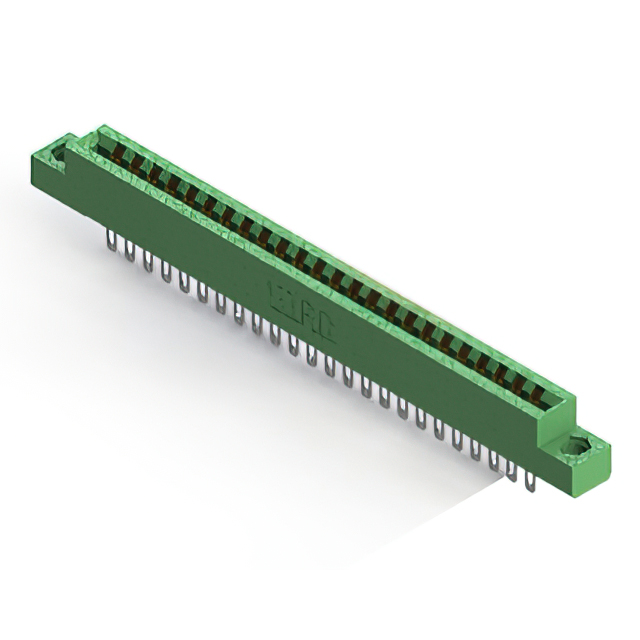

The EDAC Inc. 306-024-500-104 is a standard card edge connector receptacle featuring 56 positions arranged in a dual female configuration. It utilizes a 0.156-inch (3.96 mm) pitch and is designed for vertical panel mount installation. The contacts are gold-plated copper alloy, rated for 5 A current, with solder pin termination. The housing is constructed from thermoplastic polyester.

Feature Summary

• Dual edge female contact configuration for robust board interface
• Vertical panel mount orientation for standardized enclosure integration
• Gold-plated copper alloy contacts ensuring reliable conductivity

Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules

Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and housing color variations. Ensure the target PCB stack-up accommodates the specified 0.156-inch pitch without mechanical interference. Confirm that the panel cutout dimensions align with the manufacturer's published drawing for proper retention.

Selection Notes

Select this component when a high-density 56-position interface is required in a vertical form factor. The dual-edge design supports higher signal counts compared to single-row alternatives. Verify that the 5 A current rating meets the application's electrical load requirements before finalizing the design.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting styles. The 306-024-500-104 specifically denotes the 56-position variant with dual female contacts and gold plating, distinguishing it from single-row or silver-plated counterparts within the same family.

Replacement Considerations

Cross-reference with other EDAC 306-series parts sharing the 0.156-inch pitch and 56-position count. Verify mechanical compatibility with existing panel cutouts and PCB footprints before substituting.
