306-024-500-107

Overview

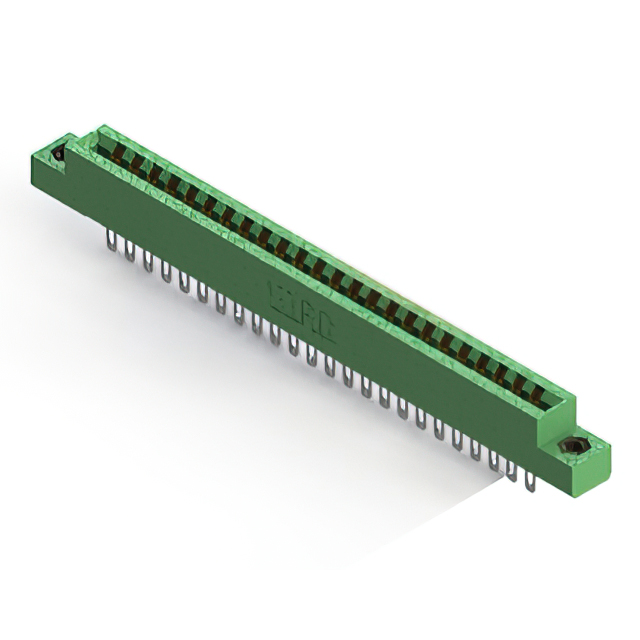

The EDAC Inc. 306-024-500-107 is a standard card edge connector from the 306 series, designed for vertical panel mounting applications. It features a single row of 24 female contacts with a 0.156-inch (3.96 mm) pitch. The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Contacts are constructed from copper alloy and plated with gold to ensure reliable electrical performance. The insulator body is made of thermoplastic material in green, providing low-profile housing. Rated current is 5 A, with an insulation resistance of 5 Gohms.

Feature Summary

• Single centerline row configuration for compact board integration
• Low profile insulator body design for space-constrained environments
• Gold-plated copper alloy contacts for corrosion resistance
• Vertical panel mount style with solder terminal connections

Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment with high-density connection needs
• Test and measurement instrumentation modules
• Computer peripheral interface cards

Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm contact plating thickness, insulator color, and mounting hardware requirements. Ensure compatibility with the target PCB thickness of 0.062 inches. Confirm that the vertical panel mount style aligns with the mechanical enclosure design. Check for any regional distribution restrictions or lead time variations before finalizing procurement plans.

Selection Notes

Select this component when a single-row, 24-position card edge connector with 3.96 mm spacing is required. It is suitable for applications needing vertical panel mounting and 5 A current rating. Consider the low-profile body for height-sensitive designs. Verify that the mating card thickness matches the 1.57 mm specification. Evaluate if the gold-plated contacts meet the environmental durability requirements for the intended operating conditions.

Part Context

This part belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series offers various position counts and mounting styles. The 306-024-500-107 specifically provides a 24-contact solution. It is part of a broader family of connectors used in electronic assemblies where reliable signal transmission between a card and a backplane or chassis is essential.

Replacement Considerations

Direct substitutes within the same series include parts with different position counts such as 306-025-500-107. Cross-series replacements require matching pitch, row count, and mounting style. Verify mechanical dimensions and electrical ratings before substituting with components from other manufacturers.
