306-024-500-158

Overview

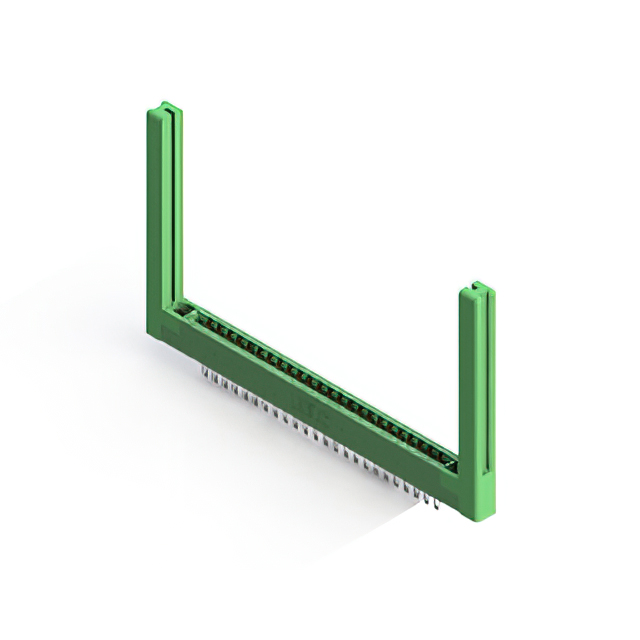

The EDAC Inc. 306-024-500-158 is a dual edge female connector featuring 56 positions with a 0.156-inch (3.96mm) pitch. It utilizes gold-plated contacts and a green housing, designed for vertical panel mount installation via solder eyelets. The component supports standard card edge interfaces.

Feature Summary

• Dual row female contact configuration
• Gold-plated contact surfaces
• Green thermoplastic housing material

Applications

• Standard card edge interface connections
• Panel mounted electronic assemblies
• Vertical circuit board interconnects

Procurement Notes

Verify the specific ordering suffix to confirm plating type and housing color. Confirm that the 56-position count matches the design requirement. Ensure the solder eyelet termination style aligns with the assembly process. Check RoHS compliance status if required by the project specifications.

Selection Notes

Select this part when a dual row female connector with a 0.156-inch pitch is required. The gold plating ensures reliable conductivity. The panel mount style suits applications needing fixed vertical positioning. Verify compatibility with the target card edge thickness.

Part Context

This component belongs to the EDAC 306 series of edgeboard connectors. The series offers various position counts and termination styles. It serves as a standard interface solution for industrial and commercial electronic equipment requiring robust card edge connections.

Replacement Considerations

The 306-024-500-168 is a related variant within the same series. Verify pin count and pitch compatibility before substitution. Ensure housing color and plating specifications match the original design requirements.
