Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 56POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：24
- Number of Positions：56
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

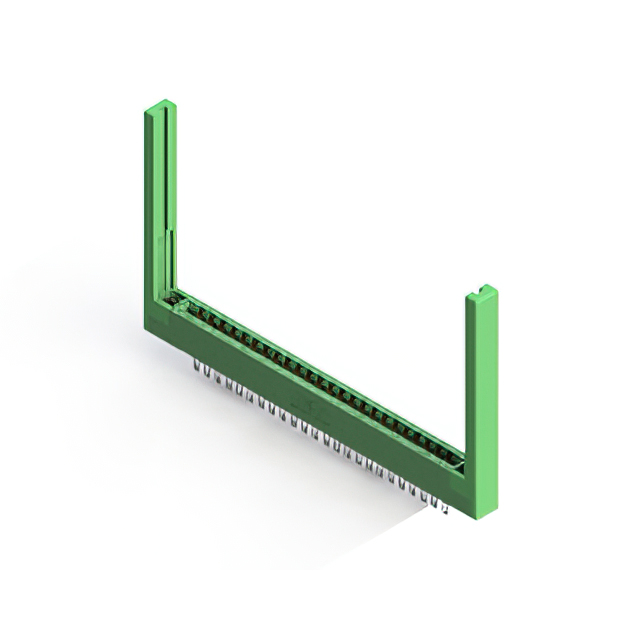

The EDAC Inc. 306-024-500-168 is a dual female card edge connector featuring 56 positions with a 0.156-inch (3.96mm) contact spacing. Designed for vertical panel mount installation, it utilizes gold-plated copper alloy contacts and a green polyphenylene sulfide insulator. The component accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). It supports an operating temperature range from -40°C to +105°C and includes flush mount flange features with top opening and threaded inserts.
Feature Summary
- Dual row female configuration for high-density board connections
- Gold-plated contacts ensure reliable signal transmission
- Vertical panel mount design with integrated flange mounting options
Applications
- Industrial control systems requiring robust card edge interfaces
- Telecommunications equipment utilizing standard card edge form factors
- Test and measurement devices needing secure panel-mounted connectors
Procurement Notes
Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact flange and termination configurations. Ensure compatibility with the target PCB thickness of 0.062 inches. Confirm that the required operating temperature range aligns with the component's specified limits of -40°C to +105°C before finalizing procurement decisions.
Selection Notes
Select this connector when a dual-row female interface with 0.156-inch spacing is required for panel-mounted applications. The choice is appropriate for designs necessitating gold-plated contacts for corrosion resistance and durability. Consider the available mounting options, including threaded inserts, if secure mechanical attachment to the chassis is a priority for the assembly.
Part Context
This component belongs to the EDAC 306 series, which specializes in card edge connectors with 0.156-inch contact spacing. The series offers various position counts and termination styles to accommodate diverse electronic assembly needs. The 306-024-500-168 variant specifically addresses requirements for dual-row connectivity with standardized mounting features.
Replacement Considerations
Consult official EDAC documentation for direct cross-reference part numbers. Verify that any substitute maintains identical 0.156-inch spacing, 56-position count, and dual female contact configuration to ensure mechanical and electrical interchangeability.
