306-024-520-101

Overview

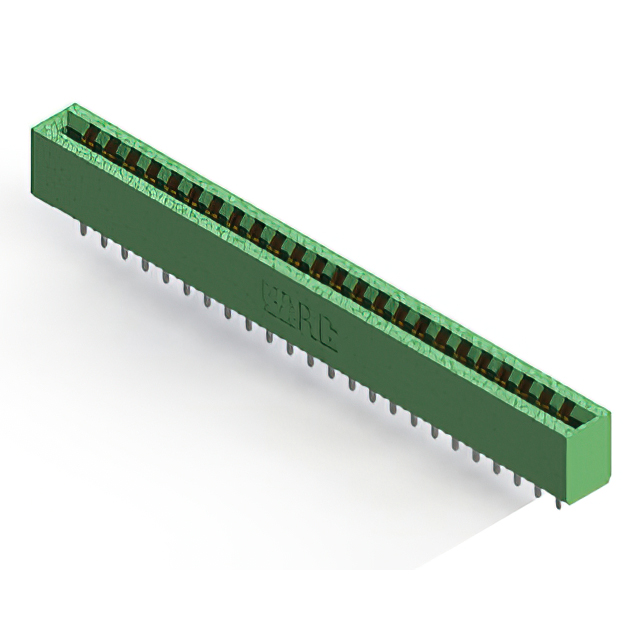

The EDAC Inc. 306-024-520-101 is a standard card edge connector from the 306 series, designed for panel mount applications with a vertical orientation. It features dual female contacts arranged in a single centerline row with a pitch of 3.96 mm (0.156 inches). The component accommodates printed circuit boards with a nominal thickness of 1.57 mm and utilizes gold-plated copper alloy contacts housed in a thermoplastic insulator body. Rated for 5 A current, it offers an insulation resistance of 5 GOhms.

Feature Summary

• Accepts printed circuit boards with a nominal thickness of 1.57 mm
• Features low profile insulator body construction
• Utilizes gold-plated copper alloy contacts for reliable connection

Applications

• Panel-mounted electronic assemblies requiring vertical interconnection
• Dual-edge card edge interface systems
• Industrial control hardware utilizing standard board thicknesses

Procurement Notes

Verify the specific ordering suffix to confirm contact configuration and plating specifications before procurement. Ensure that the target application supports the required 1.57 mm board thickness and vertical panel mounting style. Confirm compliance with relevant environmental standards such as RoHS requirements through official manufacturer documentation prior to purchase.

Selection Notes

Select this component when a vertical, panel-mount solution is required for dual-edge cards. The 3.96 mm pitch and 56-position count define the spatial constraints. Verify that the thermoplastic housing material meets thermal requirements and that the 5 A current rating aligns with the system's electrical load demands.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by robust construction suitable for demanding environments. The specific model number indicates the position count, pitch, and mounting characteristics within the broader product family.

Replacement Considerations

Cross-reference with other EDAC 306 series variants for alternative pin counts or mounting styles. Verify mechanical compatibility with existing panel cutouts and board dimensions when considering substitutes.
