306-024-520-102

Overview

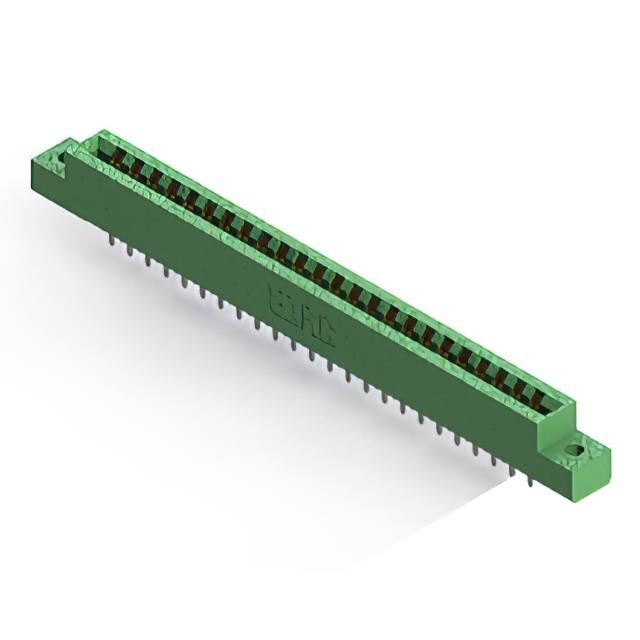

The EDAC Inc. 306-024-520-102 is a standard card edge connector featuring 24 positions with a single row configuration. It utilizes a 3.96 mm (0.156 inch) contact spacing and accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The component employs female contacts made from copper alloy, finished with gold plating to ensure reliable signal transmission. Designed for panel mount installation at a vertical angle, it offers a low-profile insulator body constructed from thermoplastic material. The connector supports a current rating of 5 A and provides an insulation resistance of 5 GOhms.

Feature Summary

• Accepts .062 inch (1.57mm) nominal thickness P.C. Board
• Low profile insulator body design
• Single centreline row configuration

Applications

• Panel mounted electronic assemblies
• Industrial control systems requiring robust card edge interfaces
• Vertical interconnection applications

Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility with your board thickness and mounting requirements. Ensure that the single-row female configuration aligns with your PCB edge card design. Check for any recent product change notifications or environmental compliance updates directly from the manufacturer before finalizing procurement decisions.

Selection Notes

Select this connector when a single-row interface with 3.96 mm pitch is required for panels accepting 1.57 mm thick cards. The gold-plated copper alloy contacts provide durability for repeated insertions. Consider the vertical panel mount style and low-profile housing dimensions during mechanical layout planning to ensure adequate clearance and secure installation within the enclosure.

Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by its versatility in offering various contact counts, termination options, and mounting styles. The 306 series specifically targets applications needing reliable vertical connections with standardized spacing, serving as a fundamental interconnection solution in broader electronic hardware architectures.

Replacement Considerations

Compatible substitutes include other EDAC 306 series variants with matching 24-position counts and 3.96 mm pitch, such as the 306-024-520-112, provided the termination and mounting specifications remain consistent with the original design requirements.
