306-024-520-108

Overview

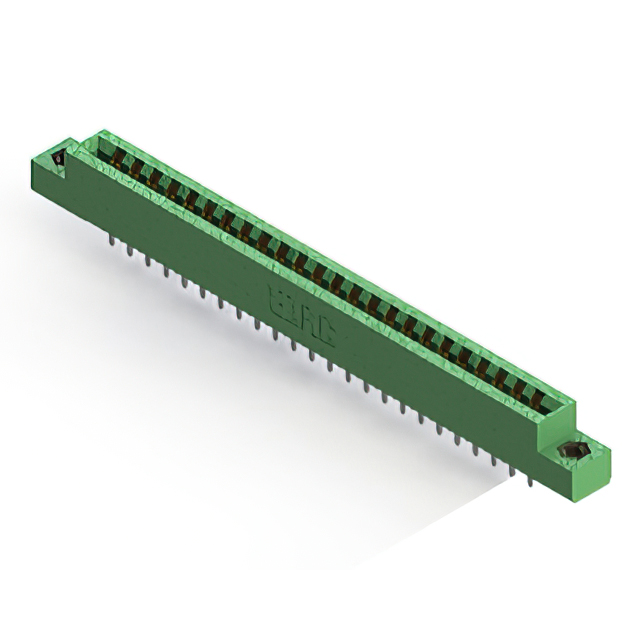

The EDAC Inc. 306-024-520-108 is a standard card edge connector from the 306 series, designed for panel mount applications. It features a dual female configuration with 56 positions arranged in two rows. The connector utilizes a 0.156-inch (3.96 mm) pitch and supports a board thickness of 1.57 mm. Constructed with copper alloy contacts plated in gold and a green thermoplastic insulation housing, it ensures reliable signal transmission. The unit operates within a temperature range of -40°C to +105°C and includes flange features such as flush mount, top opening, threaded inserts, and 4-40 compatibility.

Feature Summary

• Dual female contact configuration for secure card edge mating
• Thermoplastic insulation housing with green color coding
• Gold-plated copper alloy contacts for enhanced conductivity
• Panel mount design with integrated flange and threaded insert options

Applications

• Industrial control systems requiring robust panel connections
• Communication equipment interface modules
• Medical device internal circuit board interconnects
• Energy sector instrumentation panels

Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm exact flange dimensions and threading specifications. Ensure the target printed circuit board thickness aligns with the 1.57 mm requirement for proper mechanical engagement. Confirm RoHS compliance status through the manufacturer's current documentation before finalizing procurement orders.

Selection Notes

Select this component when a high-density 56-position connection is required in a vertical panel-mount orientation. The 0.156-inch pitch offers a balance between density and ease of assembly compared to finer pitches. Consider the gold plating for environments where corrosion resistance is critical. Verify that the available threaded insert options match the mounting hardware constraints of the enclosure design.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors, which are widely used in industrial and commercial electronics. The series provides various position counts and mounting styles to accommodate diverse PCB layout requirements. As a product of EDAC Inc., it adheres to established quality standards for durability and electrical performance in demanding operational environments.

Replacement Considerations

Direct substitutes must match the 56-position count, 0.156-inch pitch, and dual-row configuration. Verify that alternative parts support the same 1.57 mm board thickness and panel mount style. Cross-reference flange dimensions and threaded insert sizes to ensure mechanical compatibility with existing enclosures.
