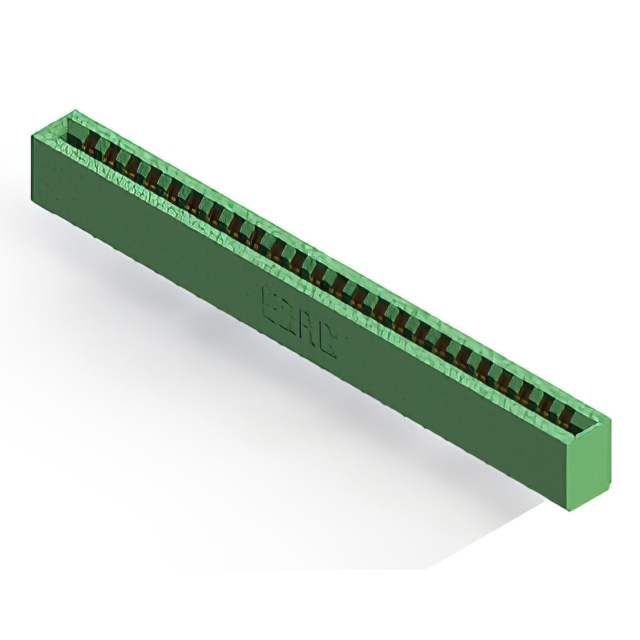

306-024-521-101

$12.01

Description：CONN EDGE DUAL FMALE 56POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:268a8bf19fe5 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 56POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：24
Number of Positions：56
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Download product information

306-024-521-101

Overview

The EDAC Inc. model 306-024-521-101 is a standard card edge connector receptacle featuring 24 positions in a single row configuration. It utilizes a 3.96 mm (0.156 inch) contact spacing and is designed to mate with printed circuit boards having a nominal thickness of 1.57 mm (0.062 inch). The component employs gold-plated copper alloy contacts for reliable signal transmission and is housed in a low-profile polyphenylene sulfide (PPS) insulator body. Termination is achieved via solder tail pins, and the unit supports vertical panel mount installation.

Feature Summary

Single centerline row design with .156 inch contact spacing
Low profile insulator body construction
Gold-plated contacts for enhanced conductivity
Accepts .062 inch nominal thickness PCB

Applications

Computing and storage systems
Medical interconnect solutions
Industrial control panels
Communications networks

Procurement Notes

Verify the specific termination style and housing material against the official datasheet before procurement. Confirm that the single-row configuration aligns with the target PCB layout requirements. Ensure compatibility with the specified 1.57 mm board thickness to guarantee proper mechanical engagement and electrical continuity during assembly.

Selection Notes

Select this component when a single-row card edge interface with 3.96 mm pitch is required. The low-profile design suits applications with strict height constraints. Verify that the solder tail termination method matches the manufacturing process. Ensure the operating environment does not exceed the thermal ratings defined in the manufacturer specifications.

Part Context

EDAC Inc. has provided interconnect solutions since 1966, specializing in card edge and rack & panel applications. This part belongs to their standard connector range, serving sectors such as computing, medical, aerospace, and industrial markets. The company emphasizes rigorous quality assurance and global logistics support for its OEM customers.

Replacement Considerations

Cross-reference compatible parts within the EDAC 306 series. Verify identical pin count, pitch, and termination type before substitution. Consult official distributor databases for current availability status.
