306-024-521-108

Overview

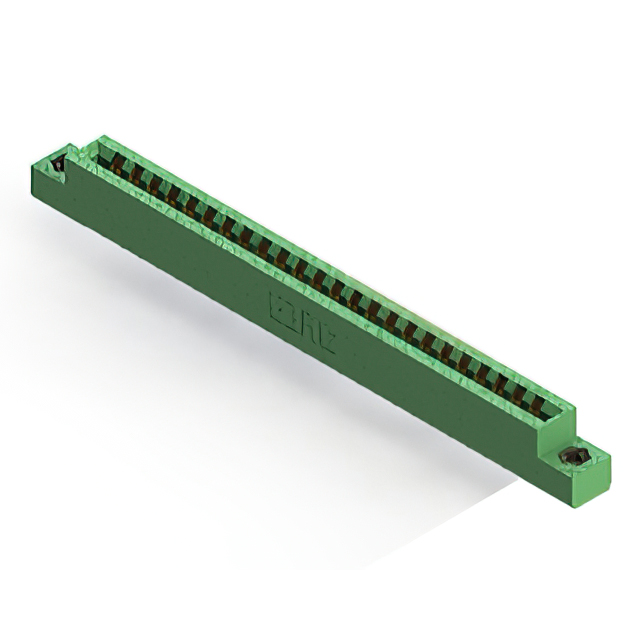

The EDAC Inc. model 306-024-521-108 is a standard card edge connector designed for dual female termination applications. It features a contact spacing of 0.156 inches (3.96 mm) and provides 56 positions. The connector utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. It is engineered to accept printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The housing is constructed from black polyphenylene sulfide, offering durability and thermal stability.

Feature Summary

• Dual row female configuration for secure board insertion
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• Low profile insulator body design for compact assembly
• Compatible with standard 0.062 inch thick PCBs

Applications

• Industrial control systems
• Computing and storage equipment
• Aerospace instrumentation
• Medical device interfaces

Procurement Notes

Verify the specific part number against official EDAC documentation to confirm pin count and pitch specifications. Ensure compatibility with the target PCB thickness of 0.062 inches. Check for any recent product change notifications or environmental compliance updates prior to procurement. Confirm that the supplier provides genuine components with traceable origins.

Selection Notes

Select this component when a dual-row female card edge connector with 0.156-inch spacing is required. It is suitable for applications needing robust connections on standard thickness boards. Consider the gold plating for environments requiring high reliability. Verify mechanical fit within the enclosure constraints due to its low profile design.

Part Context

This component belongs to the EDAC 306 series, which specializes in card edge connectors. The series offers various configurations for different board thicknesses and contact counts. EDAC has been a leader in interconnect solutions since 1966, serving sectors like computing, medical, and aerospace. This specific model represents a standard solution for vertical panel mount applications.

Replacement Considerations

Cross-reference with other EDAC 306 series parts for similar pin counts and spacing. Verify mechanical dimensions and electrical ratings before substituting. Ensure the alternative matches the dual female terminal type and gold plating specification.
