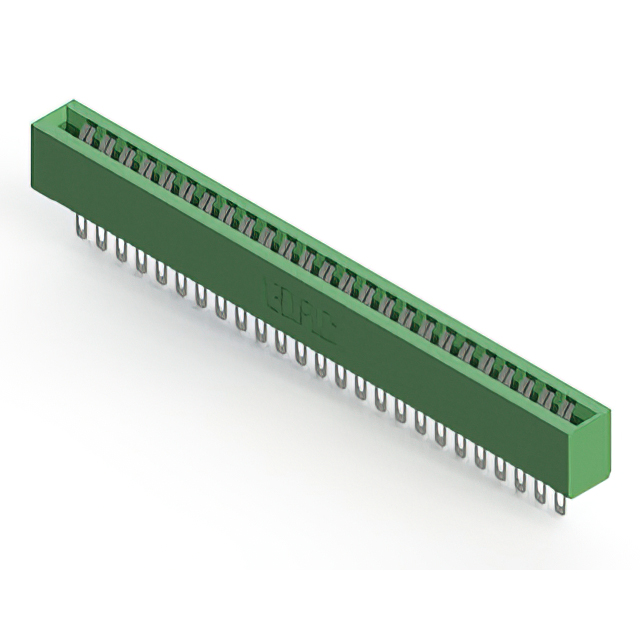

306-025-400-101

$12.01

Description：CONN EDGE DUAL FMALE 50POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:4489fadb8f2c Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 50POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：25
Number of Positions：50
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Free Hanging (In-Line)
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Download product information

306-025-400-101

Overview

The EDAC Inc. 306-025-400-101 is a standard card edge connector from the 306 series, designed for panel mount applications. It features a single row of 50 female positions with a 3.96 mm (0.156 inch) contact spacing. The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). Constructed with a thermoplastic insulator body and copper alloy contacts, it utilizes tin plating for termination. This vertical header provides reliable interconnection for non-specified dual-edge cards in industrial environments.

Feature Summary

Single centerline row configuration for compact panel mounting
Accepts 0.062 inch nominal thickness PCBs
Low profile insulator body design

Applications

Power supplies
Storage devices
Navigational equipment
Industrial control systems

Procurement Notes

Verify the specific ordering suffix to confirm contact plating and board thickness compatibility. The 306-025-400-101 designation indicates tin-plated contacts; ensure this matches the system requirements rather than gold-plated variants. Confirm that the target PCB thickness aligns with the 0.062-inch specification for proper mechanical retention and electrical contact.

Selection Notes

Select this component when a single-row, 50-position connection is required for dual-edge cards. The 3.96 mm pitch accommodates standard board layouts. Ensure the application environment does not exceed the thermal limits of the thermoplastic housing. Compare against the 306-025-520-101 variant if gold plating or different mounting styles are necessary for corrosion resistance or specific mechanical constraints.

Part Context

This part belongs to the EDAC 306 Series of standard card edge connectors. The series is characterized by its .156 inch contact spacing and low-profile insulator bodies. These connectors are engineered for durability in demanding settings, offering various termination options and mounting configurations to support diverse electronic assembly needs across multiple industries.

Replacement Considerations

The 306-025-520-101 serves as a direct functional substitute within the same series, differing primarily in contact plating specifications. Both parts share identical positioning, spacing, and form factor, allowing for interchangeability where the original tin plating was sufficient.
