306-025-500-102

$12.01

Description：CONN EDGE DUAL FMALE 50POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:e52fd864ca12 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 50POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：25
Number of Positions：50
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-025-500-102

Overview

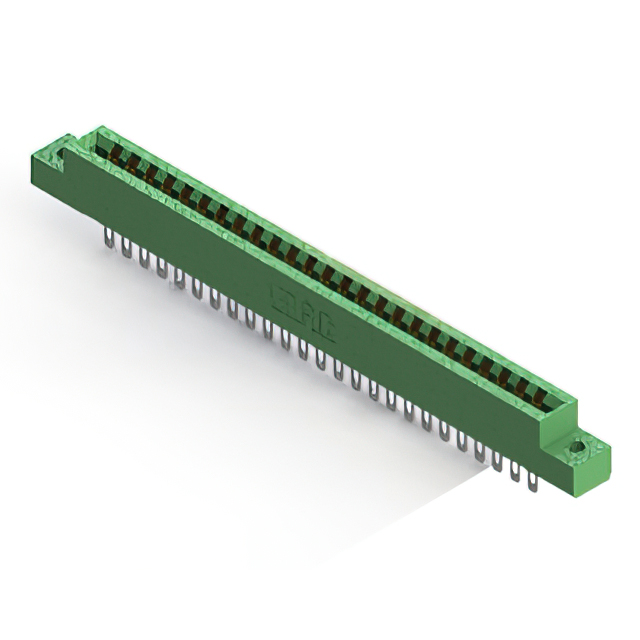

The EDAC Inc. 306-025-500-102 is a standard card edge connector designed for dual-edge board insertion. It features 50 positions with a 3.96 mm (0.156 inch) pitch. The connector utilizes female contacts made of copper alloy, finished with gold plating to ensure reliable signal transmission. It is constructed with a green thermoplastic housing and supports vertical panel mount installation. The component operates within a temperature range of -40°C to +105°C and has a current rating of 5 A.

Feature Summary

Dual-edge female contact configuration for secure board retention
Gold-plated copper alloy contacts for corrosion resistance
Vertical panel mount design for stable structural integration

Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Test and measurement instrument modules

Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm housing color and contact finish specifications. Ensure the target PCB thickness falls within the compatible range for the 3.96 mm pitch series. Confirm RoHS compliance status through official documentation prior to procurement.

Selection Notes

Select this component when a high-density dual-edge connection is required with a 3.96 mm spacing. The vertical panel mount style is suitable for chassis-based architectures. Verify that the 50-position count aligns with the circuit interface requirements and that the operating temperature range meets environmental conditions.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and pitch options for general-purpose electronic applications. The 306 series is characterized by its robust thermoplastic construction and standardized pin layouts for broad compatibility.

Replacement Considerations

Cross-reference other EDAC 306 series parts with matching 50-position counts and 3.96 mm pitch. Verify mechanical dimensions and electrical ratings before substituting with generic equivalents.
