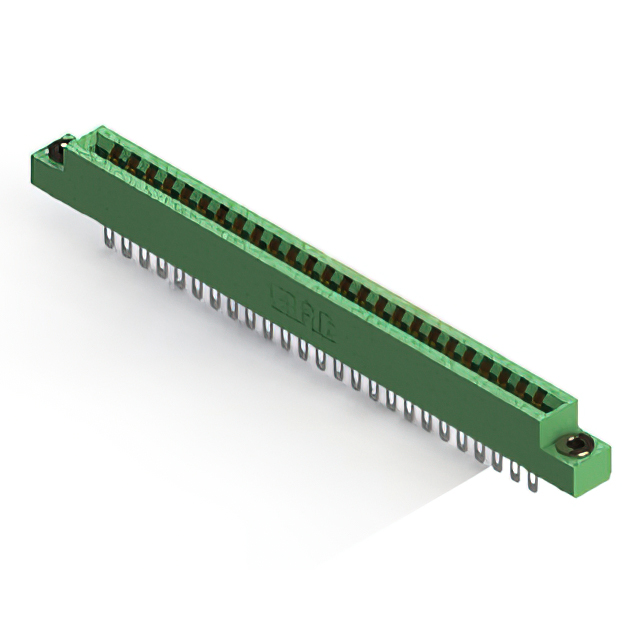

306-025-500-103

$13.75

Description：CONN EDGE DUAL FMALE 50POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:60cc4ee02abd Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 50POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：25
Number of Positions：50
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-025-500-103

Overview

The EDAC Inc. 306-025-500-103 is a standard card edge connector from the 306 Series, designed for panel mounting in a vertical orientation. It features 25 positions with a single centerline row and a contact spacing of 0.156 inches (3.96 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm), ranging from 0.054 to 0.070 inches. Contacts are made of copper alloy with gold plating, rated for 5 A current at an insulation resistance of 5 GOhms. Operating temperatures range from -40°C to +105°C.

Feature Summary

Vertical panel mount design with low profile insulator body
Gold-plated copper alloy contacts for reliable signal transmission
Compatible with non-specified dual-edge card types

Applications

Industrial control systems requiring robust board-to-board connections
Telecommunications equipment utilizing standard card edge interfaces
Test and measurement instruments needing high-reliability connectors

Procurement Notes

Verify component authenticity through authorized EDAC distributors or verified supply chain channels. Confirm RoHS compliance status and specific lot traceability requirements prior to purchase. Ensure storage conditions maintain integrity of gold-plated contacts and thermoplastic housing against environmental degradation during transit and handling.

Selection Notes

Select this model when a single-row, vertical card edge interface is required for panels. The 3.96 mm pitch suits applications needing wider spacing than standard 2.54 mm headers. Verify PCB thickness compatibility within the 1.37 mm to 1.78 mm range before integration into the assembly design.

Part Context

Part of the EDAC 306 Series, which offers various position counts and configurations. This specific part number denotes a 25-position variant with gold finish and green thermoplastic housing. It complements other series like 316 and 356 for diverse connectivity needs.
