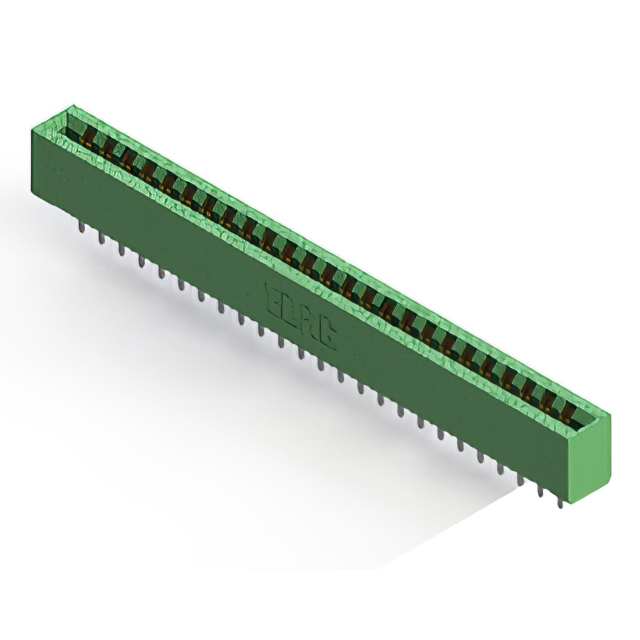

306-025-520-101

$12.01

Description：CONN EDGE DUAL FMALE 50POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:3d333ebe37cb Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 50POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：25
Number of Positions：50
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Download product information

306-025-520-101

Overview

The EDAC Inc. 306-025-520-101 is a standard card edge connector from the 306 series, designed for panel mount vertical installation. It features a single row with 50 positions and a contact spacing of 3.96 mm (0.156 inches). The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). Contacts are made of copper alloy with gold plating to ensure reliable signal transmission. The insulator body is constructed from thermoplastic material, providing durability in demanding environments.

Feature Summary

Accepts .062" (1.57mm) nominal thickness P.C. Board
Low profile insulator body design
Single centreline row configuration

Applications

Industrial control systems requiring robust interconnects
Telecommunications equipment board connections
Test and measurement instrumentation interfaces

Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm exact pin count, termination style, and mounting orientation. Ensure the target PCB thickness aligns with the connector's acceptance range. Confirm RoHS compliance status if required by project specifications before finalizing procurement orders.

Selection Notes

Select this component when a single-row, high-density connection is needed for thick PCBs. The 3.96 mm pitch allows for larger trace spacing compared to finer pitches. Verify that the panel mount vertical style fits the mechanical enclosure constraints. Consider the gold-plated contacts for corrosion resistance in harsh operating conditions.

Part Context

This part belongs to the EDAC 306 series of card edge connectors, which are characterized by their low-profile bodies and versatile mounting options. The series offers various configurations for different board thicknesses and row counts, widely used in applications requiring secure and durable board-to-board or board-to-panel connections.

Replacement Considerations

Consult the EDAC 306 series cross-reference guide for direct substitutes. Verify compatibility regarding pitch, row count, and PCB thickness tolerance before replacing.
