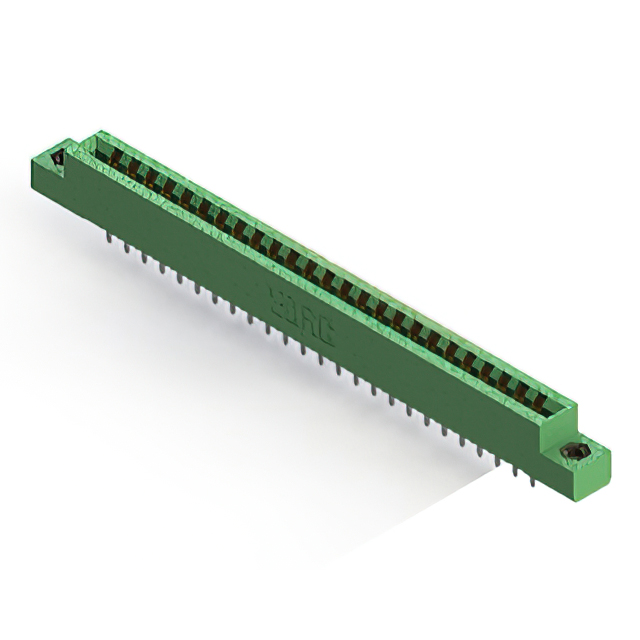

306-025-520-108

$13.75

Description：CONN EDGE DUAL FMALE 50POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:8bd23919cb74 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 50POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：25
Number of Positions：50
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-025-520-108

Overview

EDAC Inc. part number 306-025-520-108 is a standard card edge connector from the 306 series, designed for panel mount vertical installation. It features a dual female configuration with 50 positions and a pitch of 3.96 mm (0.156 inches). The contacts are gold-plated copper alloy, rated for 5 A current, while the thermoplastic housing provides insulation resistance of 5 GOhms. Operating temperature ranges from -40 C to +105 C.

Feature Summary

Dual female contact configuration for secure board insertion
Gold-plated copper alloy contacts for reliable conductivity
Thermoplastic housing material for structural integrity

Applications

Panel-mounted electronic assemblies
Vertical interconnection systems
Industrial control hardware

Procurement Notes

Verify exact pin count and gender against official EDAC datasheets before ordering. Confirm that the 3.96 mm pitch matches your PCB edge design. Check RoHS compliance status in the latest documentation. Ensure panel mounting requirements align with the vertical orientation specifications provided by the manufacturer.

Selection Notes

Select this component when a high-density 50-position interface is required. The 3.96 mm pitch suits applications needing robust mechanical retention. Verify thermal ratings meet system operating conditions. Consider the dual female design for specific mating board geometries.

Part Context

This connector belongs to the EDAC 306 series, which specializes in standard card edge solutions. The series offers various position counts and configurations. This specific model represents a mid-range density option within the product line, balancing contact count with physical footprint constraints.

Replacement Considerations

No public substitute part numbers are confirmed for this specific EDAC model. Cross-referencing requires matching pitch, position count, and mounting style exactly.
